HAPSITE Smart Plus Operating Manual

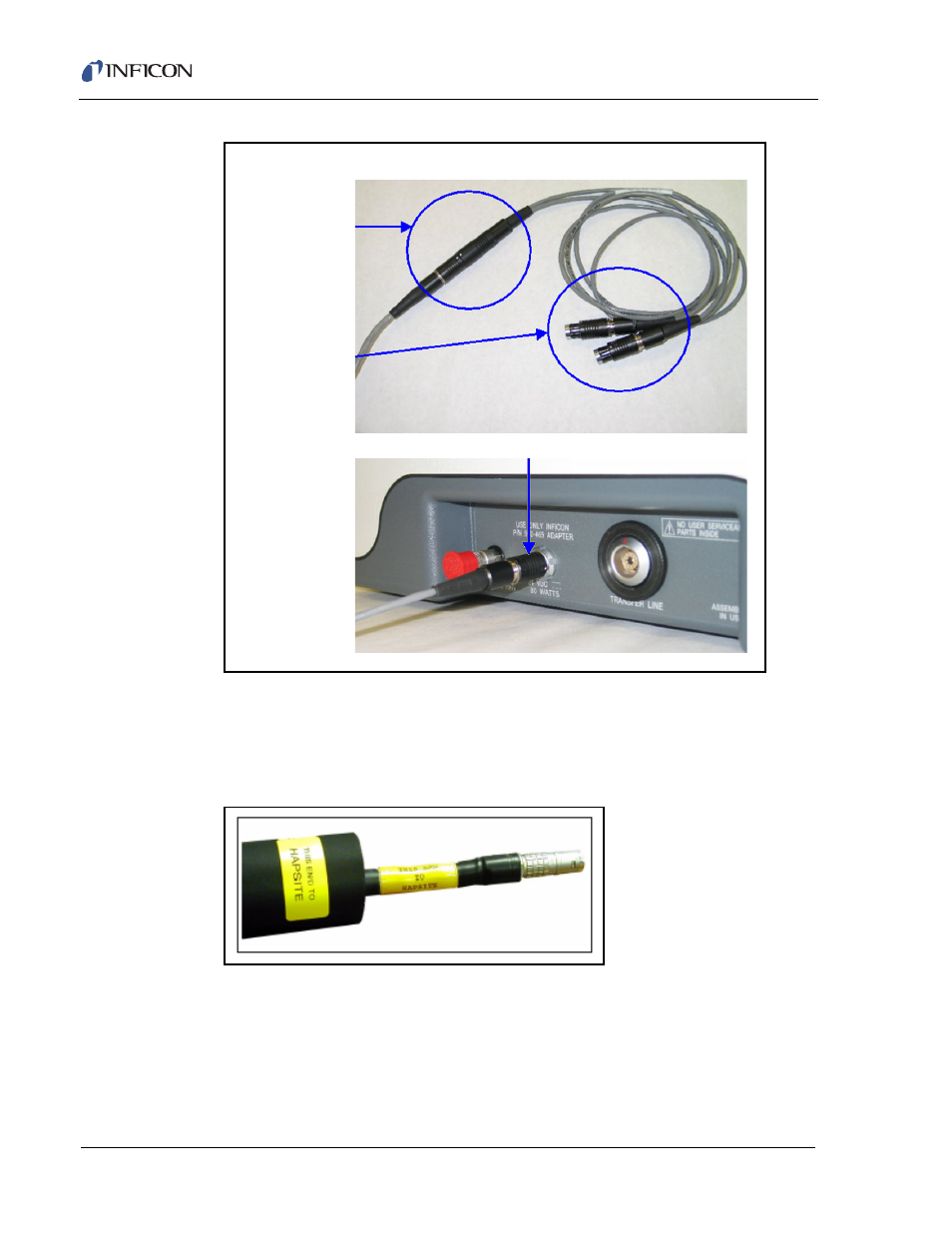

Figure 2-22 Power Supply Y-cable and Back of HSS
6 Properly align the labels on the foam insulation and Transfer Line. The end of
the insulation labeled in yellow THIS END TO HAPSITE should coincide with
the end of the Transfer Line labeled in yellow THIS END TO HAPSITE. See
Figure 2-23 .
Figure 2-23 HAPSITE End of Transfer Line
Y-Connector
and
24 V(dc) Supply
Cable
Plug into
HAPSITE
and
HSS
HSS Connection
