HAPSITE Smart Plus Operating Manual

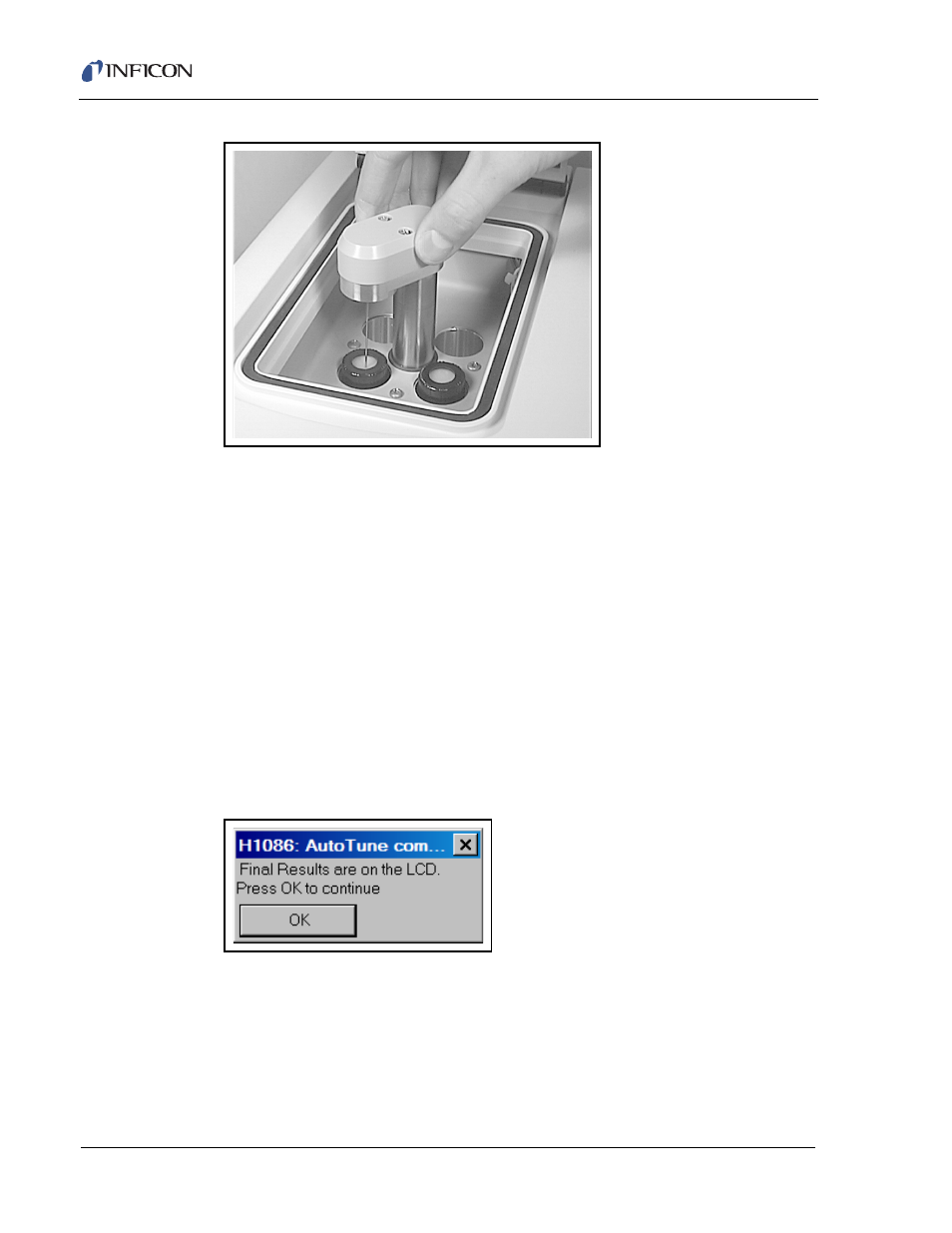

Figure 5-25 Headspace Needle
6 When powered on or taken out of Extended Standby (refer to section 3.1 on
page 3-1 or section 3.8.1 on page 3-63 ), the HAPSITE will automatically start
preparing the start up Headspace method. If the method that the HAPSITE
begins preparing is not the desired one, refer to
Section 5.3, Selecting a New
Method, on page 5-7 .
6a If running a Headspace method that requires a Concentrator, the HAPSITE will
run a Concentrator Cleanout. Its progress will be shown by a bar graph. If the
Concentrator Cleanout is not successful, refer to
Section 3.1.3, Concentrator
Cleanout Failure, on page 3-11 .
7 As part of the preparation, the HAPSITE will heat all necessary components,
check pressures and run an AutoTune if necessary. Progress of the preparation
will be shown as a bar graph on the Laptop screen. If AutoTune fails, refer to
Section 7.4, AutoTune Failure, on page 7-6 . When the final results message is
displayed, click OK. See Figure 5-26 .
Figure 5-26 AutoTune Complete
8 Click the RUN METHOD icon. Click on the GCMS folder. Click on the folder of
the desired configuration and then click on the method folder. See Steps 2-4 of
section 5.3 on page 5-7 .
9 Gently press the Headspace needle into the 40 mL vial that contains the
blank/sample. See
Figure 5-25 .
