HAPSITE Smart Plus Operating Manual
library (included with the Plus IQ software). See
for more information. Quantitative identifications can be
made by analyzing standards of known concentration and creating a target
compound library of concentration response curves. See
In summary, the GC first separates the gaseous compounds by time. Then the MS
identifies and measures the gases contained in each of the time-separated peaks.
This enables the GC/MS system to report the specific identity and concentration of
each of the compounds present in the initial pulse of gas analyzed.
1.5 Instrument Overview
The HAPSITE system is comprised of two modules:
the HAPSITE, also known as the Analytical Module, and
the Service Module.
The HAPSITE is comprised of many systems and subsystems.
Figure 1-1
shows
a diagram of the major subsystems. These subsystems include the several pumps
used to provide flow and vacuum.
The Service Module components are identified in
Figure 1-1
, everything else is
housed in the HAPSITE. The Service Module and the HAPSITE module contain a
Vacuum Interconnect Valve and electrical connectors through which their vacuum
systems join. The modules communicate when the two modules are coupled
together.

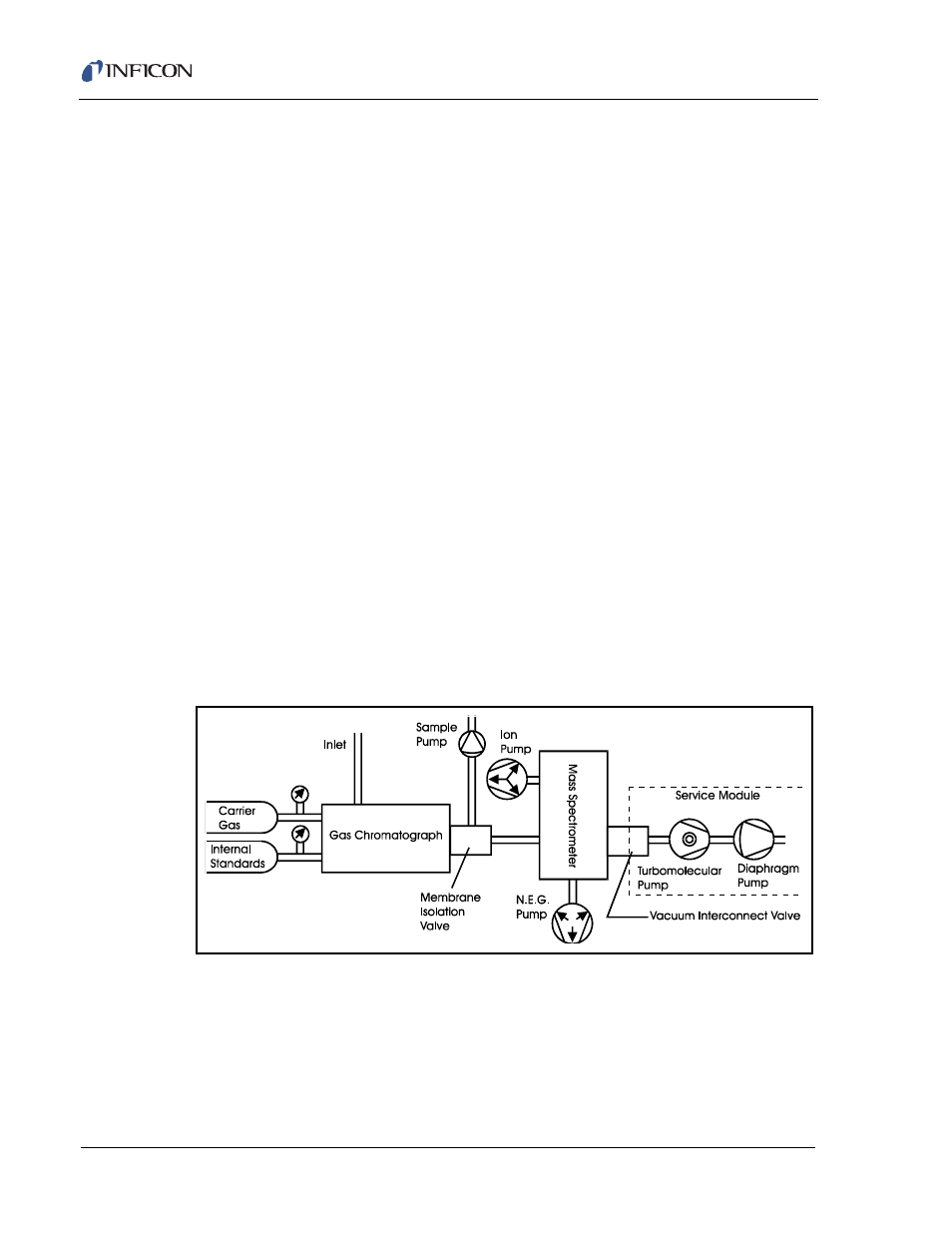

Figure 1-1 Major HAPSITE Subsystems
