HAPSITE Smart Plus Operating Manual

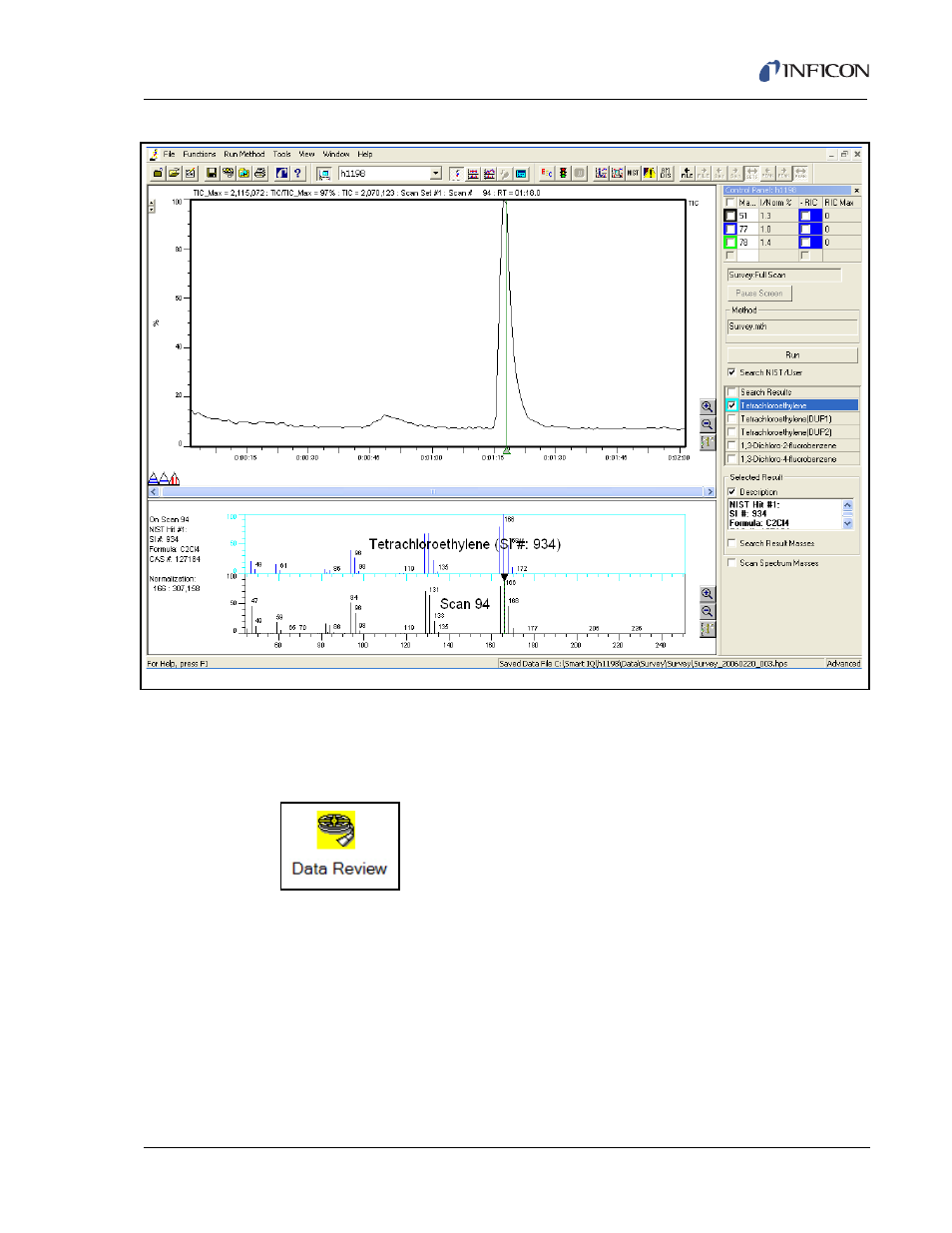

Figure 5-7 Sample Survey Run Complete
13
To view the data, note the data file name and click on the Data Review icon.
This icon is located in the Setup System window of the Plus IQ software. See
Figure 5-8
.
Figure 5-8 Data Review Icon
14
Select the Survey folder and locate the data file that was noted. Refer to
Figure
5-7
NOTE: If the HAPSITE has been left unattended, the message SYSTEM IS NOT
READY may appear. To begin preparing the system again, either touch
PREPARE or using the arrow keys, highlight PREPARE and push OK
SEL.
