HAPSITE Smart Plus Operating Manual

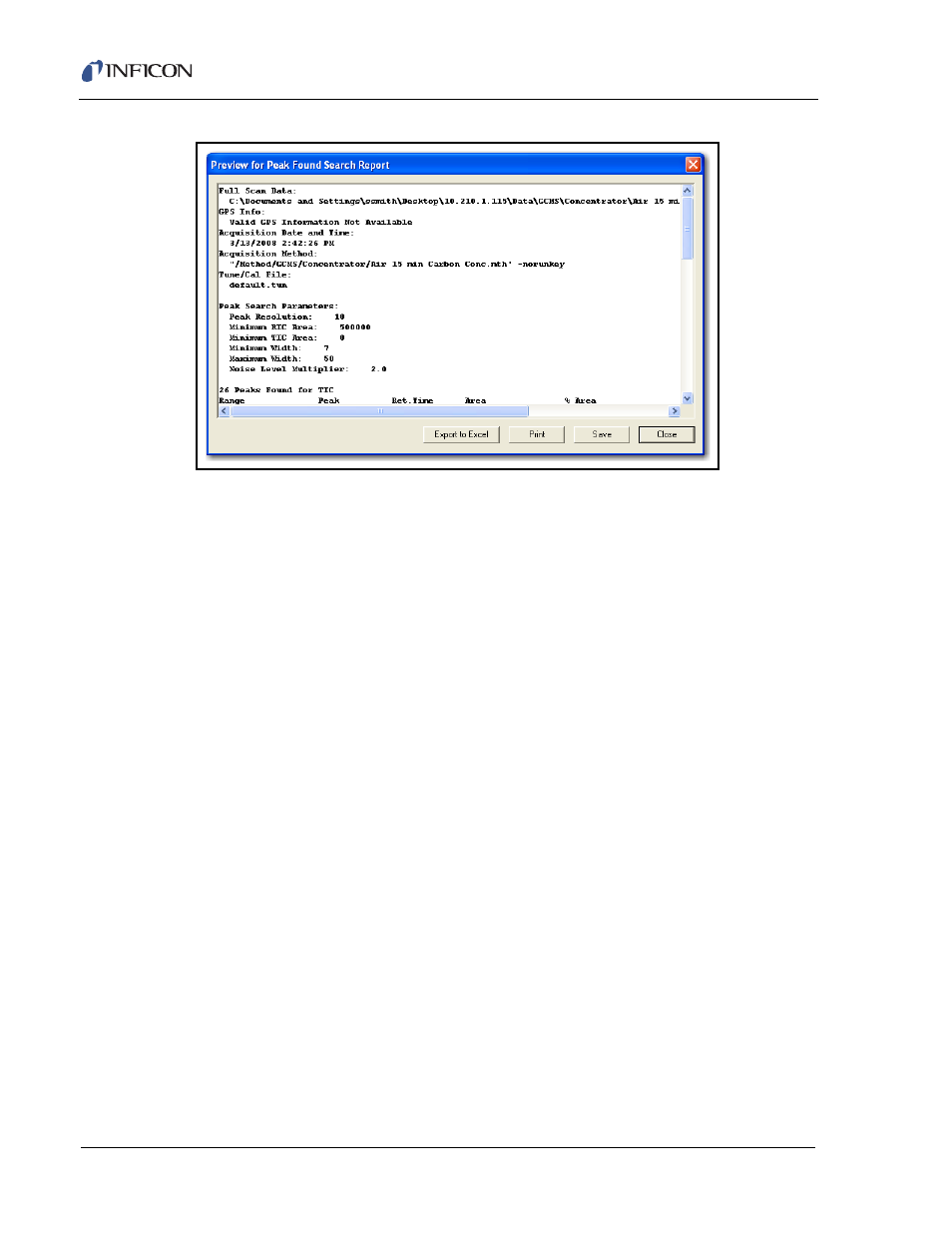

Figure 9-36 Preview Screen
The report is displayed, refer to
Figure 9-36
. Some options are:
Check the box that says Report as shown in the grid. This will only display
the first hit found for each peak. With the box unchecked, all hits for each peak
are displayed.
Export to Excel will create an Excel® text file, open Excel and display the file.
Print will print the report as displayed.
9.8.2 Analyzing Data Using AMDIS
AMDIS is an additional program provided by NIST and can be used to analyze data
generated by the HAPSITE Plus IQ. AMDIS is the acronym for Automated Mass
Spectrum Deconvolution and Identification System.
AMDIS utilizes its own databases. The HAPSITE Plus IQ utilizes the HAPSITE.msl
AMDIS library.
9.8.3 How To Access AMDIS
AMDIS can be accessed by the following methods:
Selecting the AMDIS button on the Function Toolbar, or
Right click in the TIC window, then select Peaks >> Switch to AMDIS, or
With the TIC window as the active window, press the Shift+F8 key.
NOTE: AMDIS only works on the TIC data. AMDIS does not use spectrum
data.
