HAPSITE Smart Plus Operating Manual
3.7.1.1 Battery Icon
If a battery is installed, the Battery icon will display information about the battery’s
charge level. The charge level is found as a vertical bar graph inside the battery
icon. See
Figure 3-84
. If a battery is not installed, EXTPWR will be displayed under
the icon and the icon’s charge level bar graph will turn red.

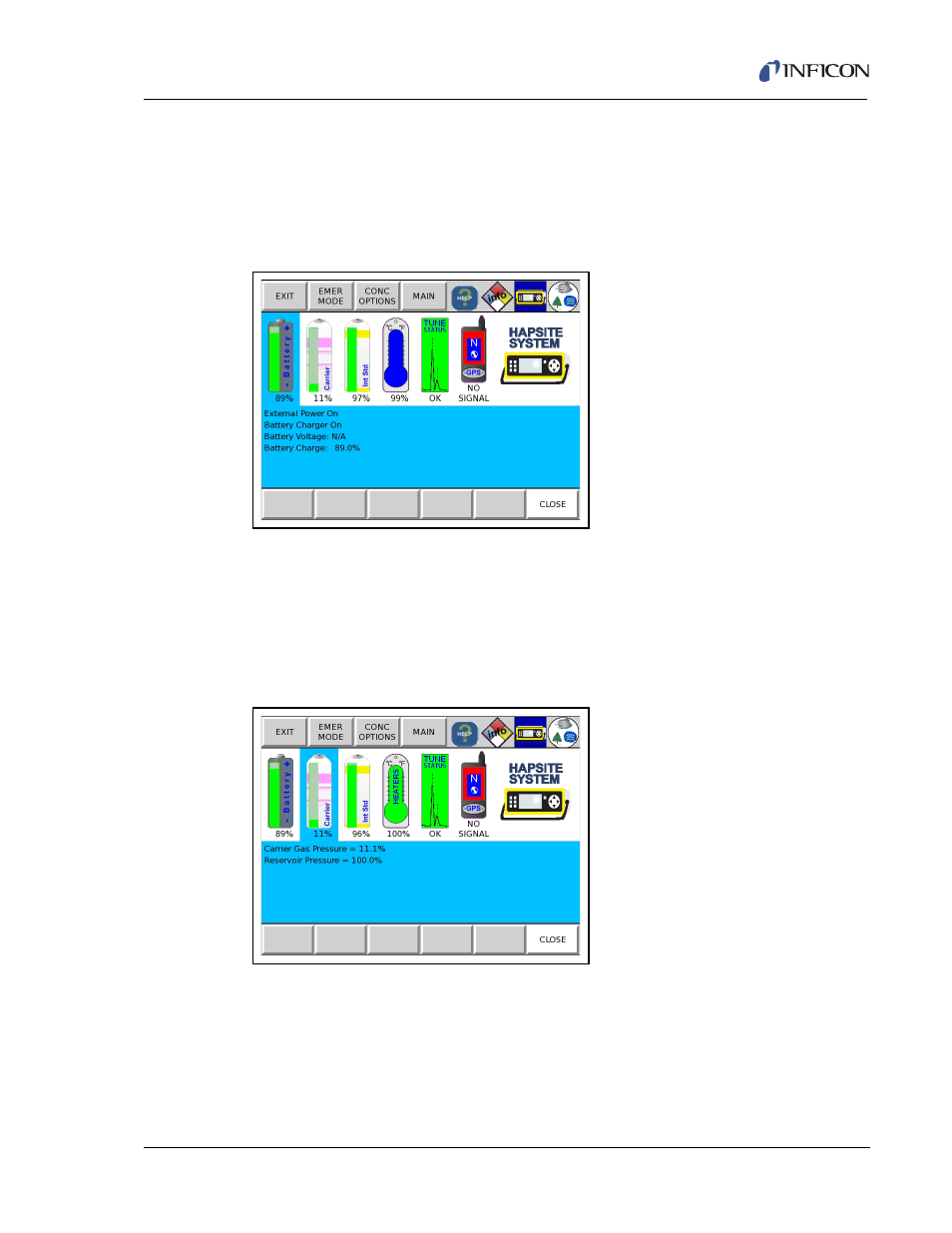

Figure 3-84 Battery Icon
3.7.1.2 Carrier Gas Icon
The HAPSITE uses nitrogen as the carrier gas. Touching the Carrier Gas icon, will
provide information about the pressure of the carrier gas in the can. A vertical bar
graph in the icon will correlate the approximate percentage to the remaining
amount of gas in the can. See
Figure 3-85
.
Figure 3-85 Carrier Gas Icon
