P1
C
HAPSITE Smart Plus Operating Manual
8 By touching CMPD ID, a list of found compounds will appear. See Figure 3-47 .
This page will display for each compound:
 The CAS number
 The Fit
 The retention time
 TIC (Total Ion Count) Max
 The current TIC
 The Run Time
 The Time Left which is the time remaining until the run is finished
NOTE: Touching a compound on the list will display its NIOSH database
information. See Step 8 on page 3-35 .
8a The CMPD ID screen can also be accessed by using the arrow keys to
highlight CMPD ID and pushing OK SEL.See
Figure 3-47 .

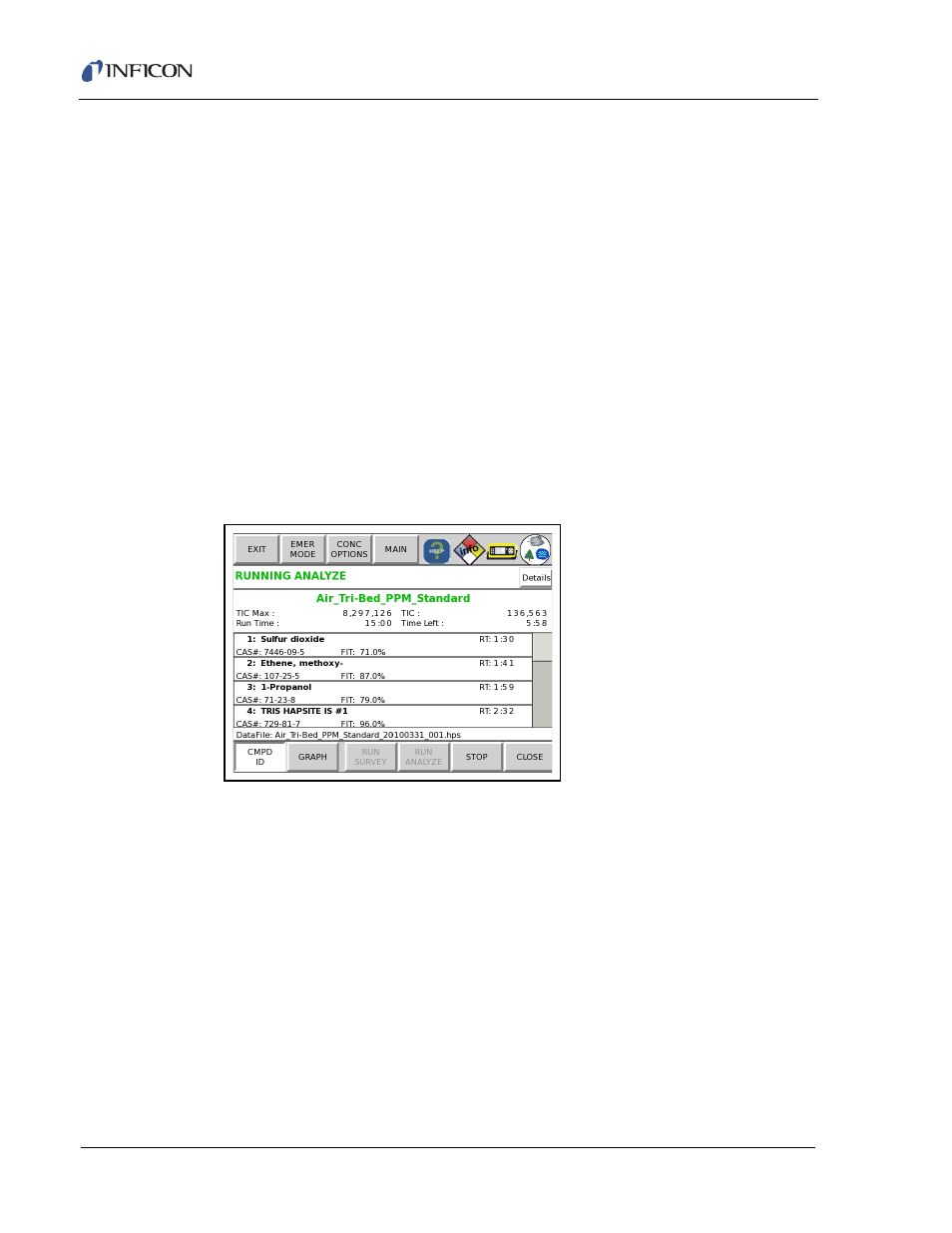

Figure 3-47 Sample Compound Identification for Concentrator
9 To view the chromatogram while the method is running, touch GRAPH. See
Figure 3-48 . Alternately, use the arrow keys to highlight GRAPH. Push OK
SEL. This screen will display:
 The TIC Max
 The current TIC
 The time remaining until the run is finished
 The Run Time
 The Time Left which is the time remaining until the run is finished
NOTE: Touching the blue compound identification above the chromatogram
will display its NIOSH database information. See Step 8 on page 3-28 .
