3.10 SituProbe
For complete information on SituProbe methods, see
. For
instructions on setting up the SituProbe, refer to
Section 2.9, SituProbe, on page
3.10.1 Procedure for SituProbe Operation
1
Verify that the desired sample configuration is installed (i.e., Concentrator).
2
Make sure that the Transfer Line is attached.
3
When powered on or taken out of Extended Standby, the HAPSITE will
automatically start preparing a SituProbe method. If the SituProbe method that
the HAPSITE begins preparing is not the desired one, refer to
Selecting a Different Method Using the SELECT METHOD Icon, on page 3-13
.
4
The HAPSITE will display the progress of its preparation. Refer to
Step 5 for more information.
5
If using the water vessel, fill the vessel to the top of the outlet connection. See
Figure 3-119
.

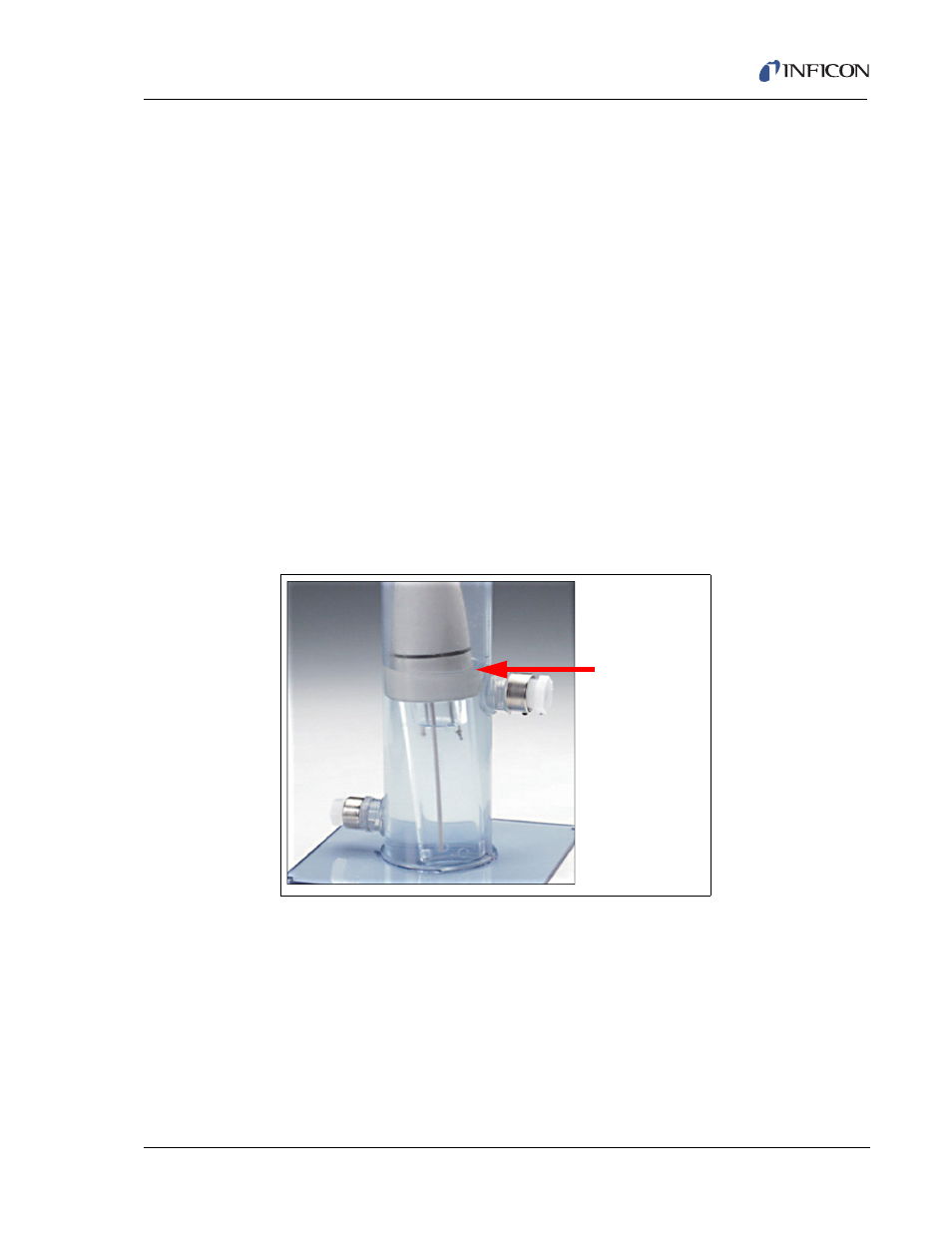

Figure 3-119 SituProbe Vessel
6
Insert probe into vessel or water source.
6a
If running a SituProbe method that requires a Concentrator, the HAPSITE will
run a Concentrator Cleanout. Its progress will be shown by a bar graph. If the
Concentrator Cleanout is not successful, refer to
section on page 3-29
.
7
When the HAPSITE has finished preparing, a SYSTEM READY message will
appear with a prompt to press Survey or Analyze to begin sampling.
NOTE: A blank run is recommended before running a sample.
Top Of Outlet
Connection
