HAPSITE Smart Plus Operating Manual

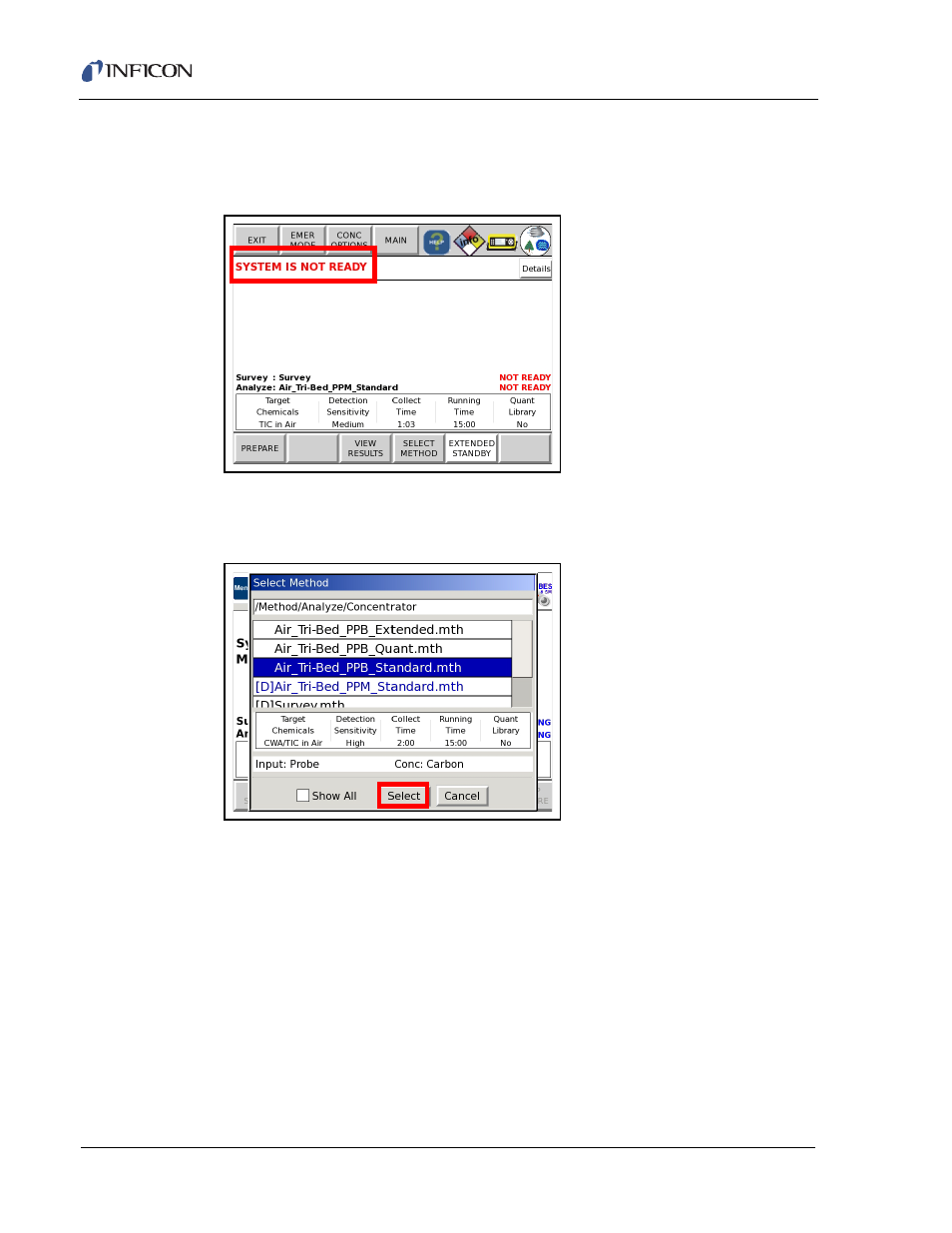

3 The SYSTEM IS NOT READY screen will appear. To select a new method,
touch SELECT METHOD or using the arrow keys, highlight SELECT
METHOD and push OK SEL. See
Figure 3-23 .
Figure 3-23 Selecting a Method Screen
4 Scroll up or down using the scroll bar or with the arrow keys. When the desired
method is highlighted, touch Select or push OK SEL. See
Figure 3-24 .
Figure 3-24 Method Selection
