4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 98

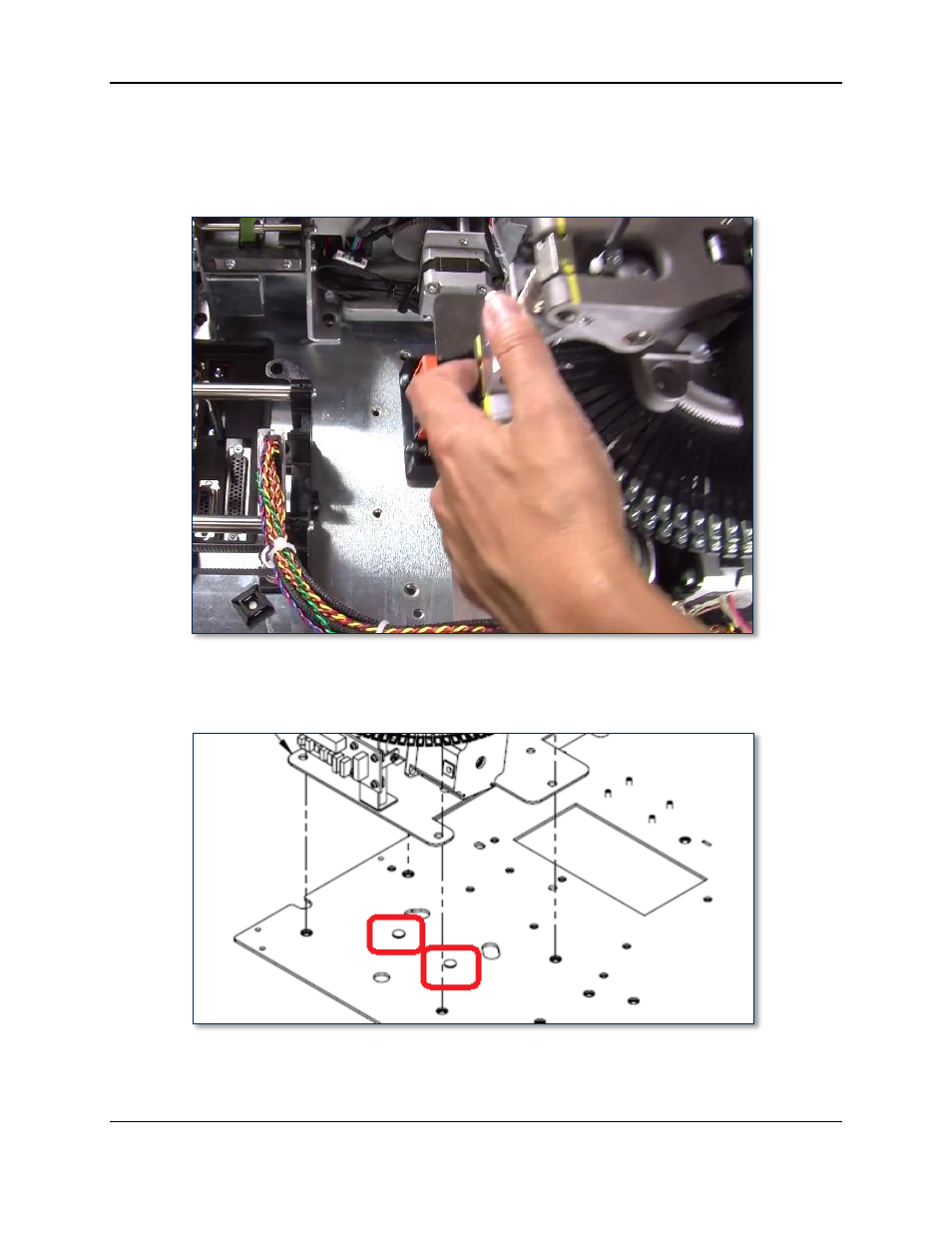

To re-install the embosser module, follow these steps:
1) Use both hands to lower the replacement embosser and indenter modules (already together), into the
device in the same position and orientation as the one you just removed. Line up the four corner
screw holes in the embosser with the four corresponding screw holes in the top deck plate.
2) Make sure the two raised keys stamped into the top deck plate (see Figure 4-76) are seated in the
indentations in the base of the embosser. Push the embosser forward, backward, left, and right to
make sure they are holding the embosser in place.
Figure 4-76 - Embosser Base Keys In Top Deck Plate (TOP RIGHT VIEW)
3) Use the 5/32” ball-end Allen wrench to re-fasten and tighten the four screws and washers that attach
the corners of the embosser to the top deck plate.
