4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 106
4.13 How to Remove / Re-install the Tipper and Exit Ramp Module
Approximate time to remove: 15 minutes plus any sub-procedures
Approximate time to re-install: 15 minutes plus any sub-procedures
The tipper / exit ramp module receives cards from the exit transport module, stamps them with heat-fused
foil from the tipper foil roll, then moves them to the card output hopper on a cushion of air. It is located
in the front middle of the top deck plate, just to the rear of the card output hopper.

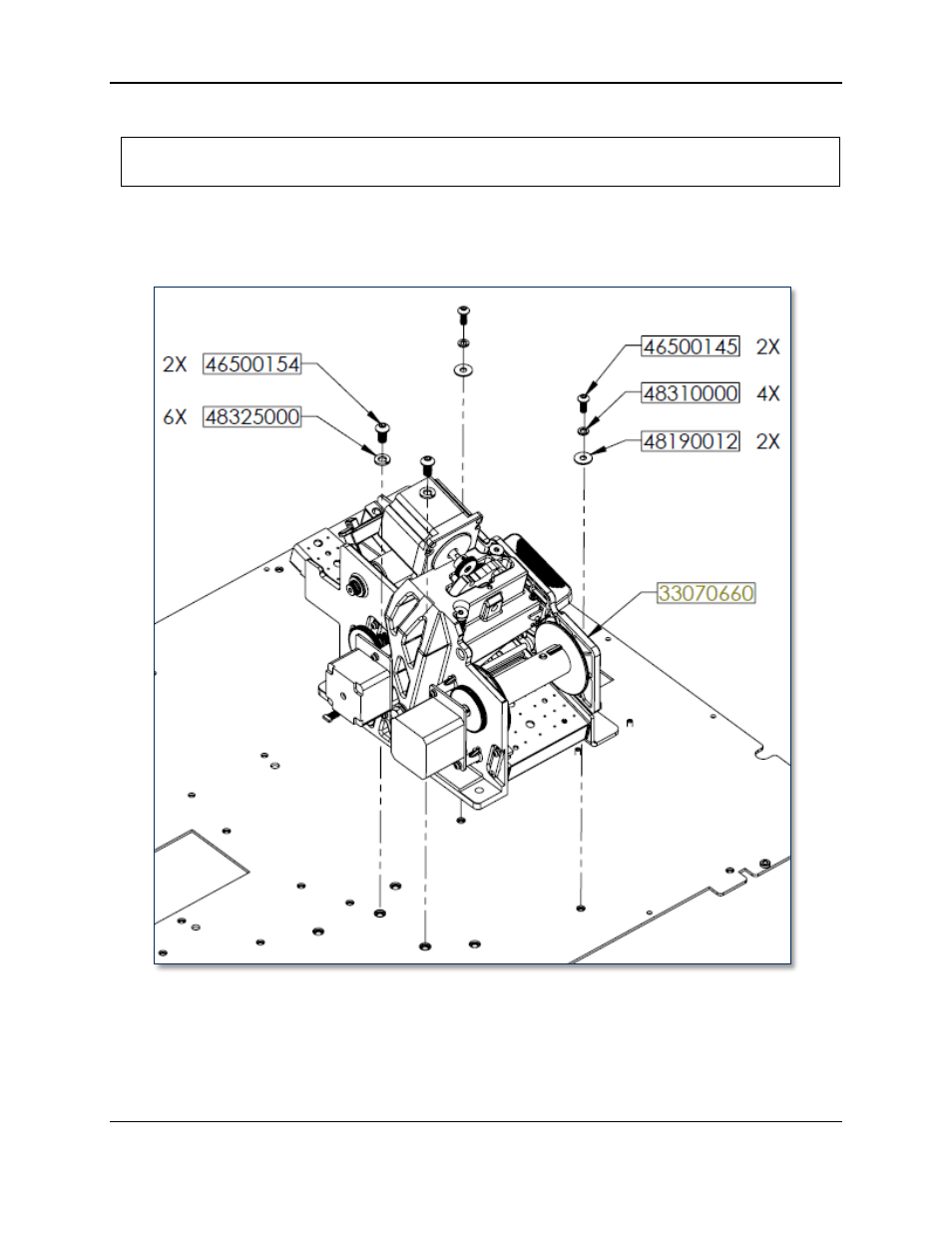

Figure 4-85 - Tipper / Exit Ramp Module (FRONT LEFT VIEW)
To remove the tipper / exit ramp module, follow these steps:
12) Prepare the device for replacing parts by following the steps in section 4.1 How to Prepare the
Device for Removing / Re-installing Modules. At the end, the device should be powered down with
all external cables safely disconnected.
