4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 58
To re-install the cover, follow these steps:
Note: Re-installing the cover is an intricate, detailed procedure that can affect the security
and functionality of the device. Perform each step carefully and methodically, and make
sure everything is in place before proceeding to the next step.
1) Move any loose cables toward the center of the device so they will not be in the way of the cover.
2) Stand in front of the device and use both hands to slide the cover forward until it rests solidly on the
base of the device and does not have to be held in place.

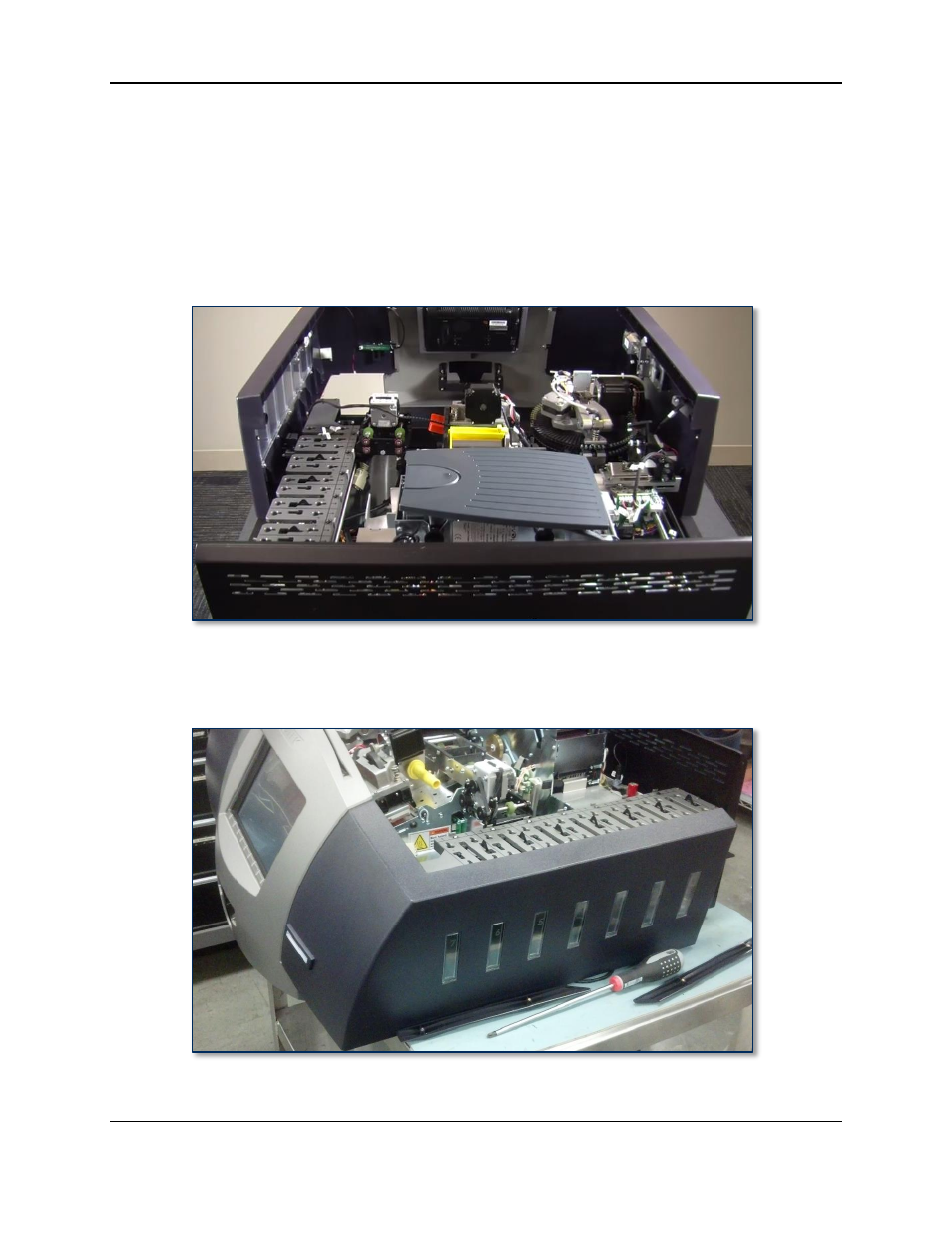

Figure 4-24 - Cover Resting On Top Deck (REAR VIEW)
3) Move the cover slightly to the right and rest its right side on the tabletop next to the device; this will
give you easier access to the connectors around the hopper module.
4) Re-connect the cables you disconnected before removing the cover.
5) Re-tie or re-clip any cables you untied or unclipped before removing the cover.
