4 - Removal and Re-installation

ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual


Page 127

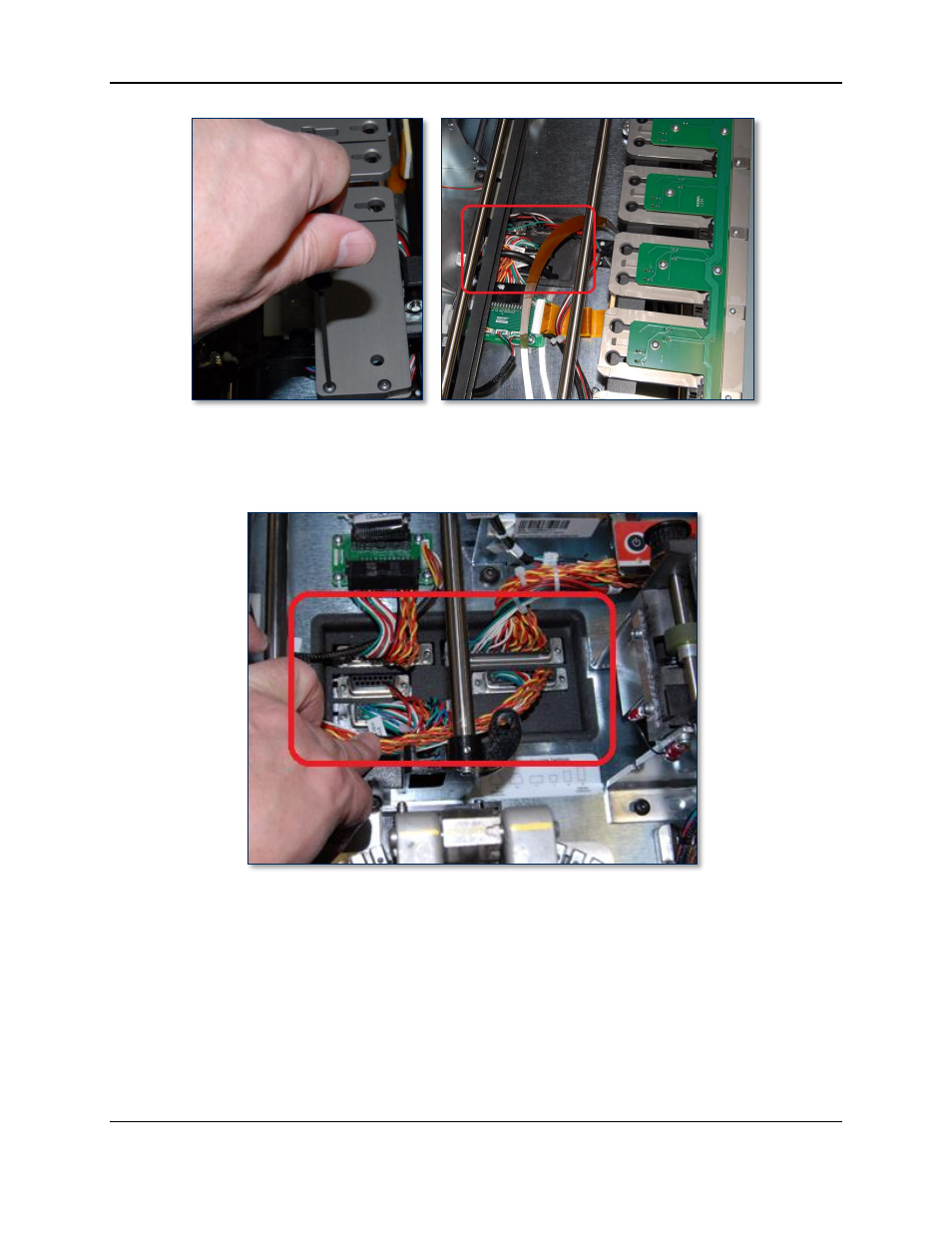

Figure 4-110 - Right Connector Panel Below Hopper Deck (TOP VIEW FROM FRONT)

8) Unplug all four connectors from the right connector panel, noting which cable connects where.

9) Locate the left connector panel, near the exit transport and behind the embosser (see Figure 4-111).

Figure 4-111 - Left Connector Panel (TOP VIEW FROM FRONT)

10) Unplug all five connectors from the left connector panel, noting which cable connects where.

11) Behind the left side access door, locate the power controller, indicated in Figure 4-112.
