2 - Introduction
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 15
2.9.2 How to Use the Sensor Utility Page
To check the real-time status of all EC2000 sensors, use the touchscreen to navigate to Menu > Settings
> Sensors to open the Sensor Utility page. In normal operation with the top access door closed, with
all card stock hoppers inserted, and with the device just powered up and ready to process cards, the
Sensor Utility page should match Figure 2-3.

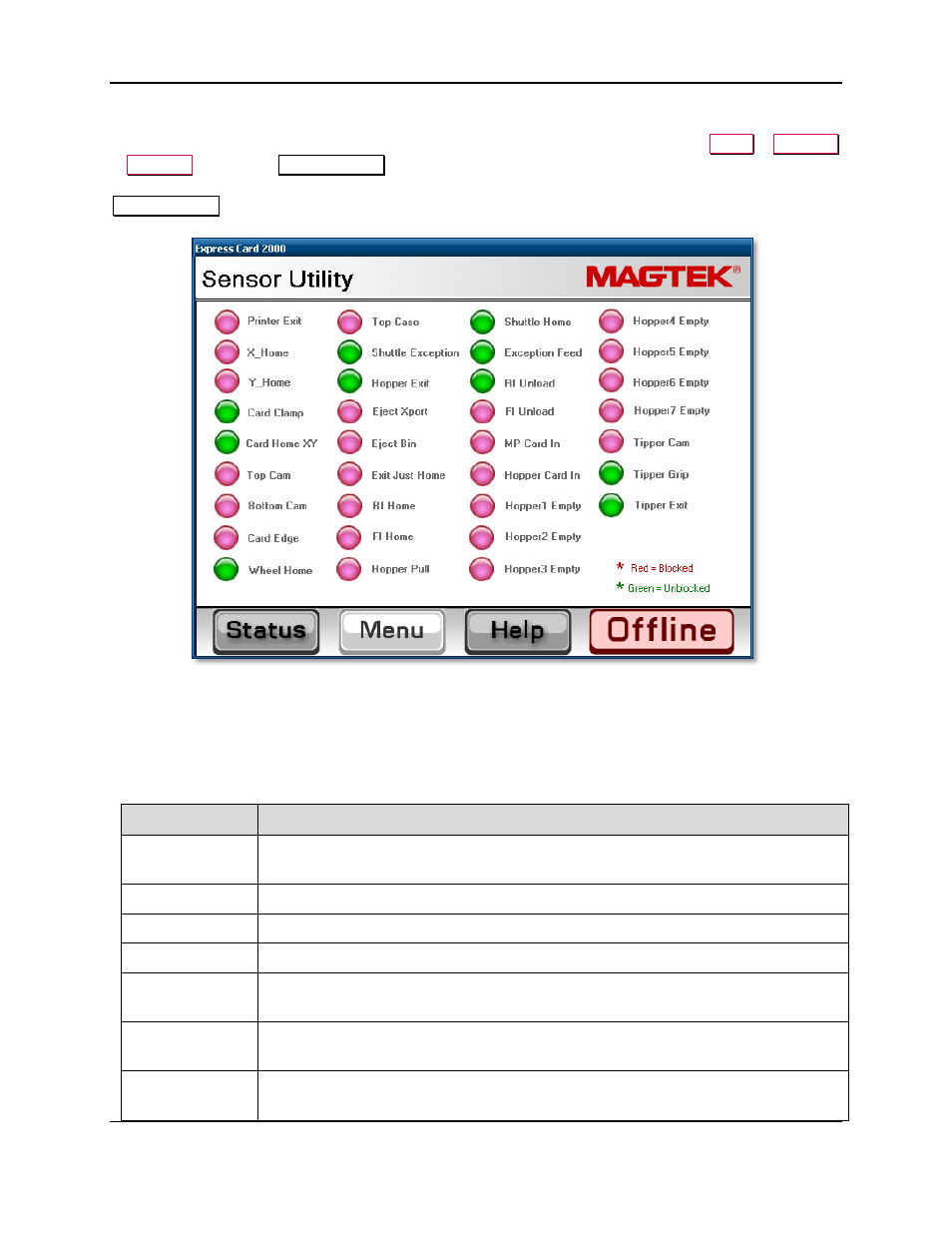

Figure 2-3 - Sensor Utility Page
To test a sensor, block or unblock it and verify its status changes. Table 2.2 provides descriptions of each
sensor and the cases where it is blocked or unblocked, and Figure 2-4 on page 17 shows where all sensors
are located in the device.
Table 2.2 - EC2000 Sensor Functions
Sensor Name Function
Printer Exit Blocked when there is NO card in the image printer exit, and is unblocked when
there is a card in the image printer exit.
X_Home Blocked when the X carriage on the XY transport is parked at its left edge.
Y_Home Blocked when the XY transport is parked at the rear of the device.
Card Clamp Blocked when the card clamp on the XY transport is closed.
Card Home XY Blocked when the XY transport reaches the front of the device (at the embosser),
regardless of its X position.
Top Cam Blocked during normal operation and briefly unblocks when the cam that drives
the top embosser hammer reaches specific points in its rotation.
Bottom Cam Blocked during normal operation and briefly unblocks when the cam that drives
the bottom embosser hammer reaches specific points in its rotation.
