5 - Adjustments
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 161

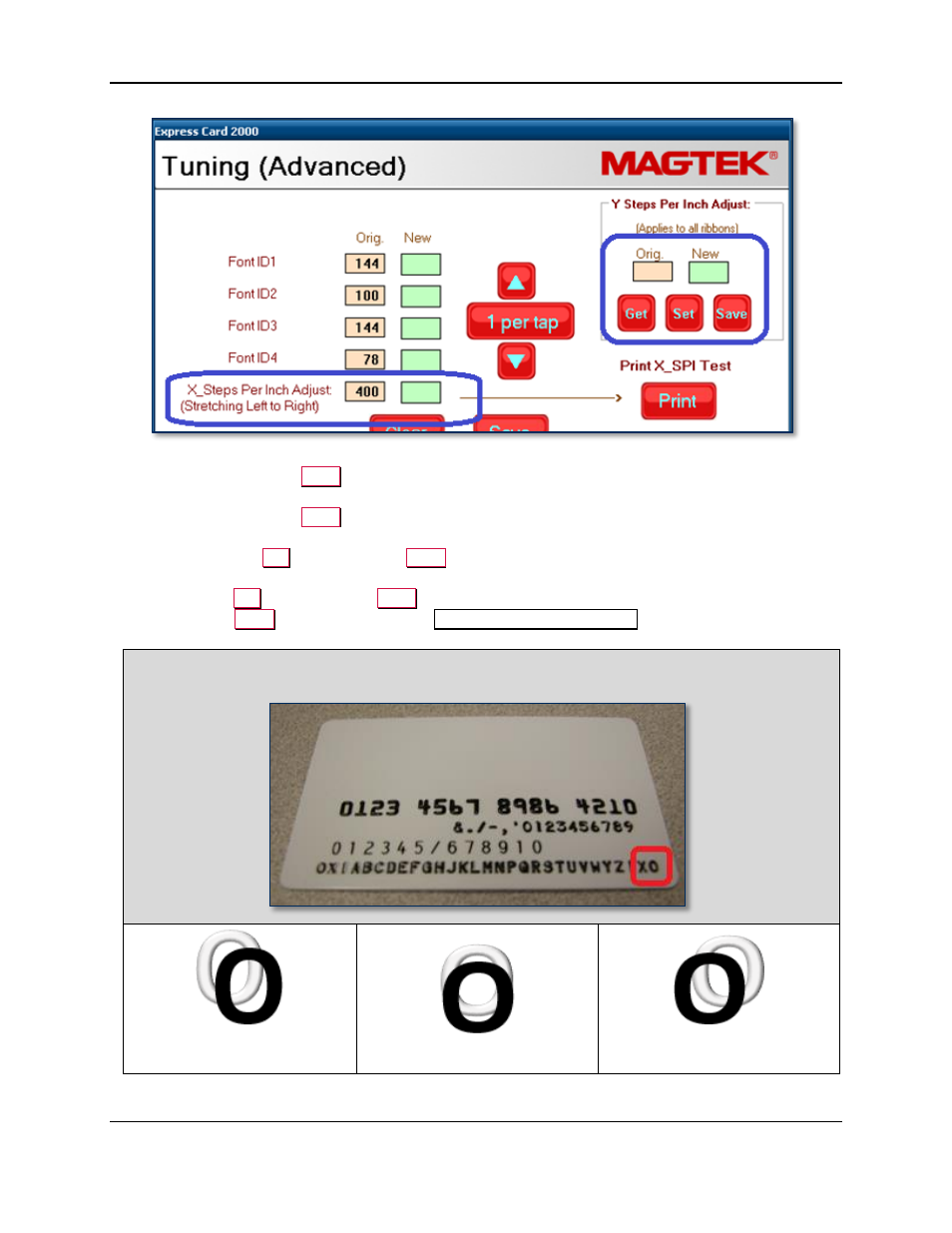

d) If the embossed character appears to the left of the printed character, increase the X_SPI value
and press the large Save button.
e) If the embossed character appears to the right of the printed character, decrease the X_SPI value
and press the large Save button.
f) If the embossed character appears higher than the printed character, decrease the Y_SPI value
and press the Set button, then the Save button.
g) If the embossed character appears lower than the printed character, increase the Y_SPI value and
press the Set button, then the Save button.
h) Press the Back button to return to the Tuning (Move Embossing) page.
i) Repeat the process until the embossed character lines up with the printed character.
Look at the LAST letter at the bottom of the card
Adjust X_SPI, Y_SPI
↑ X_SPI
↓ Y_SPI
↓ Y_SPI
↓ X_SPI
↓ Y_SPI
