4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 135
To re-install the power supply, follow these steps:

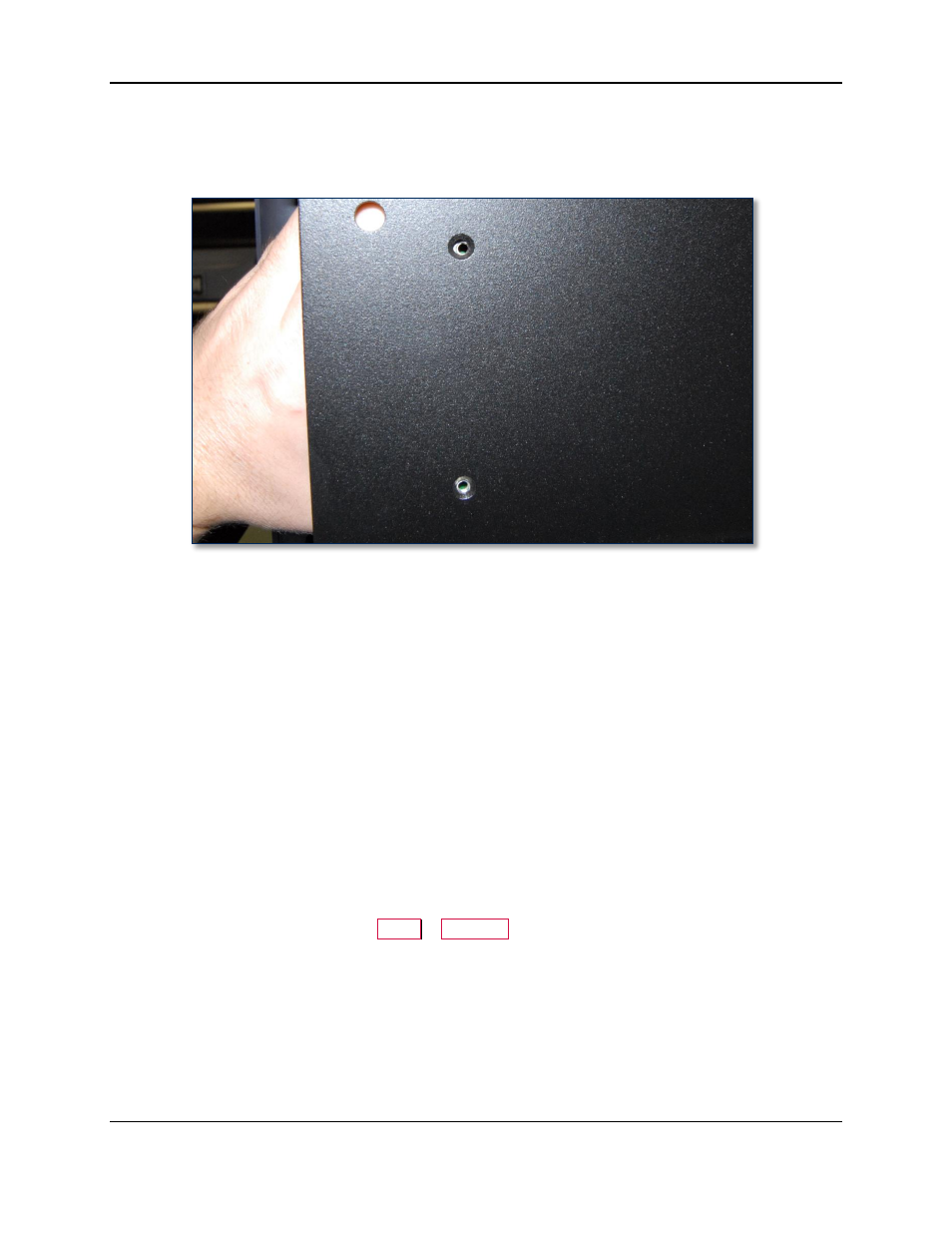

1) Put one screw on the tip of the screwdriver, hold the power supply in place with one hand and line up
the screw holes, then loosely screw in the first screw to “tack” the power supply in place.
2) Screw in the remaining screws and tighten all of them.
3) Re-connect the output wires according to Figure 4-121.
4) Plug in the control and monitoring cable.
5) Re-connect the input wires. Insert the spade connectors behind the plate behind the screws (not
directly behind the screws, see Figure 4-119). The connections are as follows:
a) The green ground wire goes nearest the floor (toward the rear of the device).
b) The black wire goes in the middle.
c) The white wire goes on top (toward the front of the device).
6) Snap the clear plastic cover back in place in front of the input wires.
7) With assistance, carefully tip the device forward to its normal operating position.
8) Replace the left side access door by following the steps in section 4.3 How to Remove / Re-install
the Side Access Doors.
9) Perform any additional service that requires the device to be powered off and open.
10) Re-attach the power cable, network cable, and any security hardware.
11) Power up the device.
12) From the touchscreen, navigate to Menu > Samples , create a sample card, and make sure the device
functions properly and the sample looks correct. If the device does not power up or function
properly, contact MagTek Support Services (see Appendix A Technical Support).
