5 - Adjustments
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 149

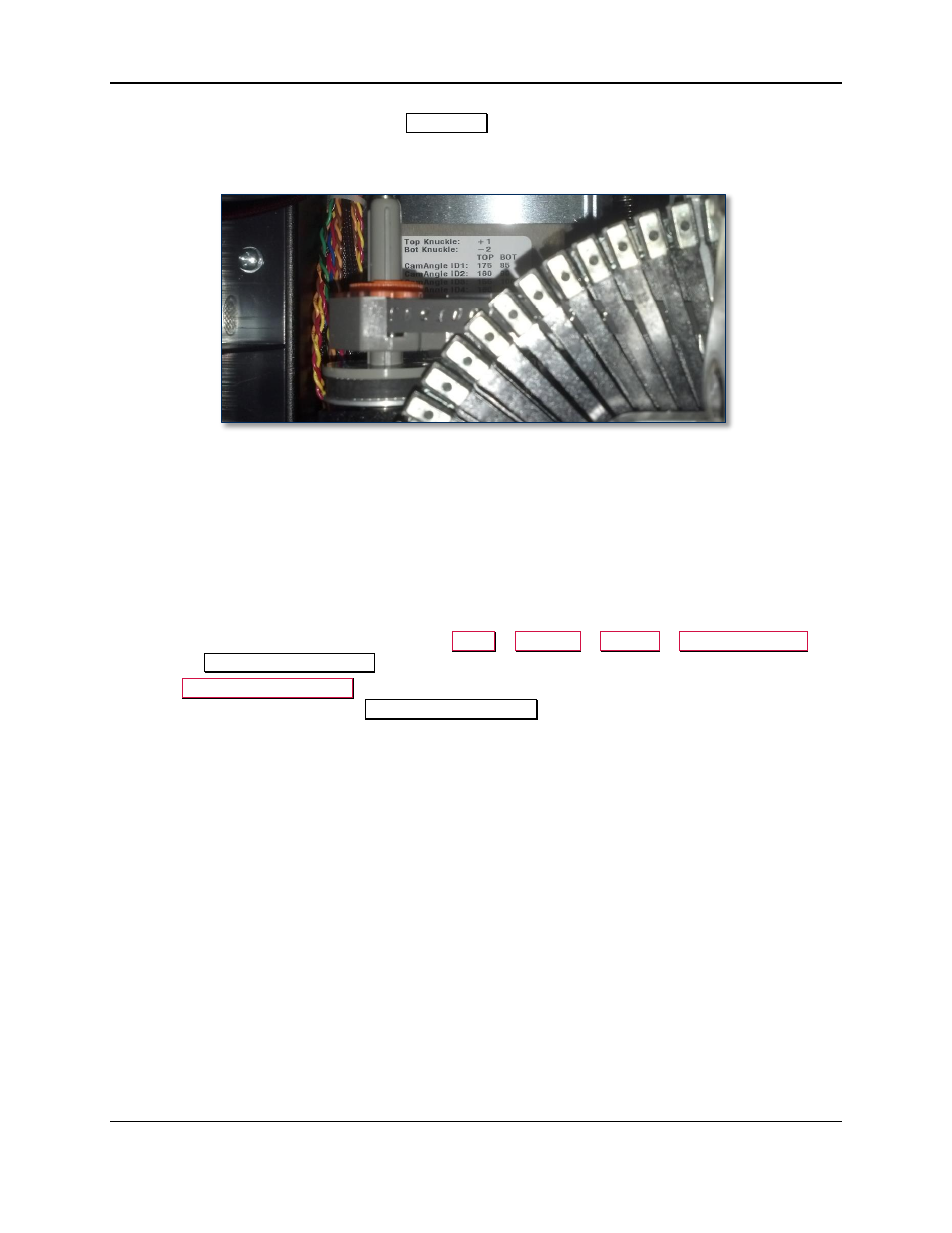

The embosser can also be calibrated using CamAngle settings in the software. A label on the base of the
embosser should show the factory default settings for the embosser knuckles and for the CamAngle
settings, as shown in Figure 5-5.
Figure 5-5 - Factory Default Knuckle and CamAngle Settings (TOP VIEW FROM FRONT)
Many of the following sections require you to create a tuning card, then measure the thickness of its
embossed characters. Section 5.4.3 How to Measure Embossed Character Thickness provides step-by-
step instructions.
5.4.2 How to Calibrate the Embosser Wheel Home Position
To make sure the motor controller accurately centers the embosser wheel in the embosser bridge opening,
follow these steps:
1) Close the EC2000 top access door to make sure no light will interfere with the sensor.
2) In the ExpressCard 2000 Utility, Navigate to Menu > Settings > Service > MCP Commands to
open the Controller Commands page.
3) Press Calibrate Wheel Home button and wait for 10 seconds until the embosser stops moving. The
system will fill in a value below Calibrate Wheel Home .
