4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 72

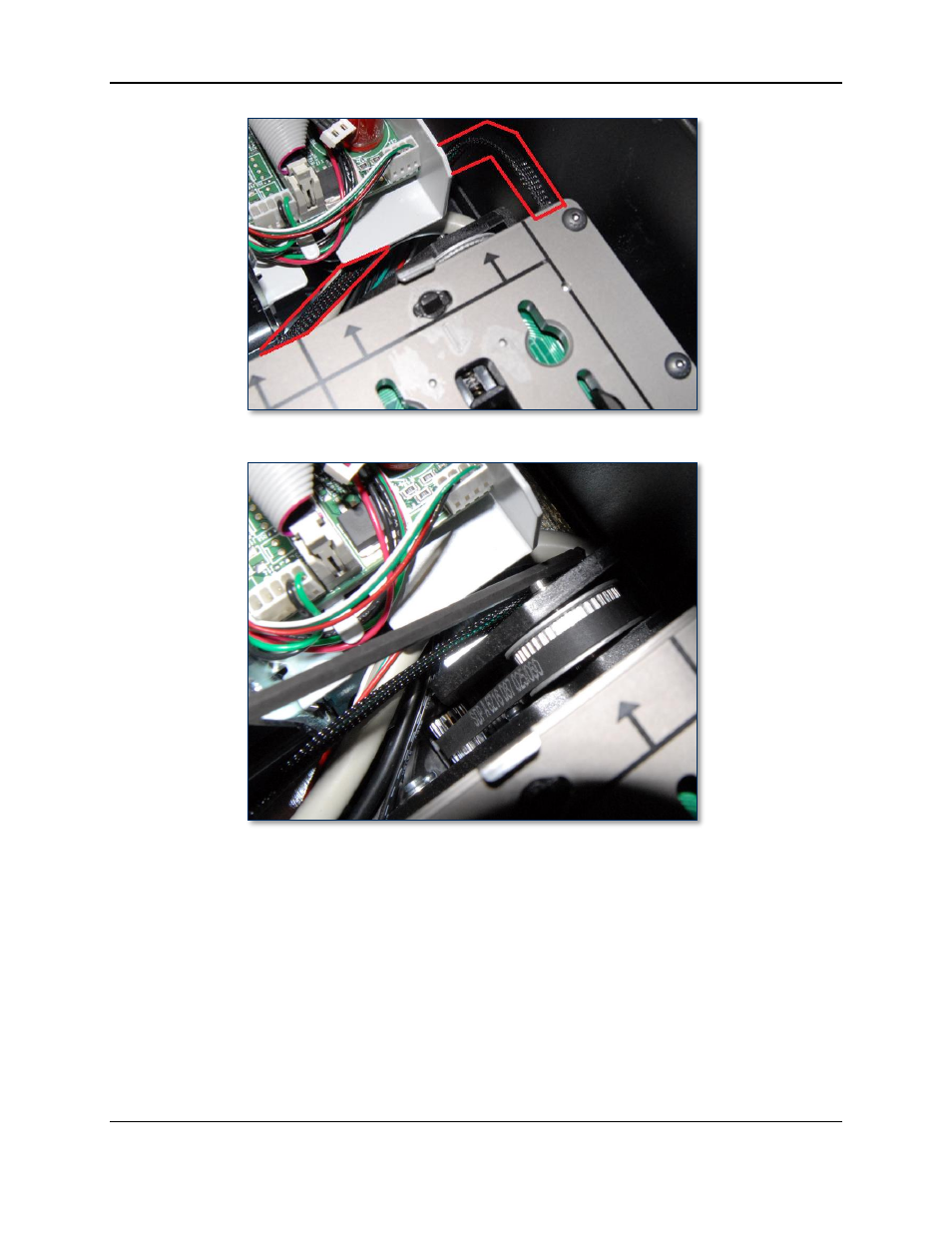

Figure 4-44 - Preferred Routing for HOME SENS Cable (TOP VIEW FROM FRONT RIGHT)
Figure 4-45 – Optional Routing for Tighter HOME SENS Cable (TOP VIEW FROM FRONT RIGHT)
16) Continue routing the HOME SENS cable along the bundle of cables that runs below the left edge of
the hopper module. Use cable ties to re-bundle the cables as shown in Figure 4-46.
