4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 57

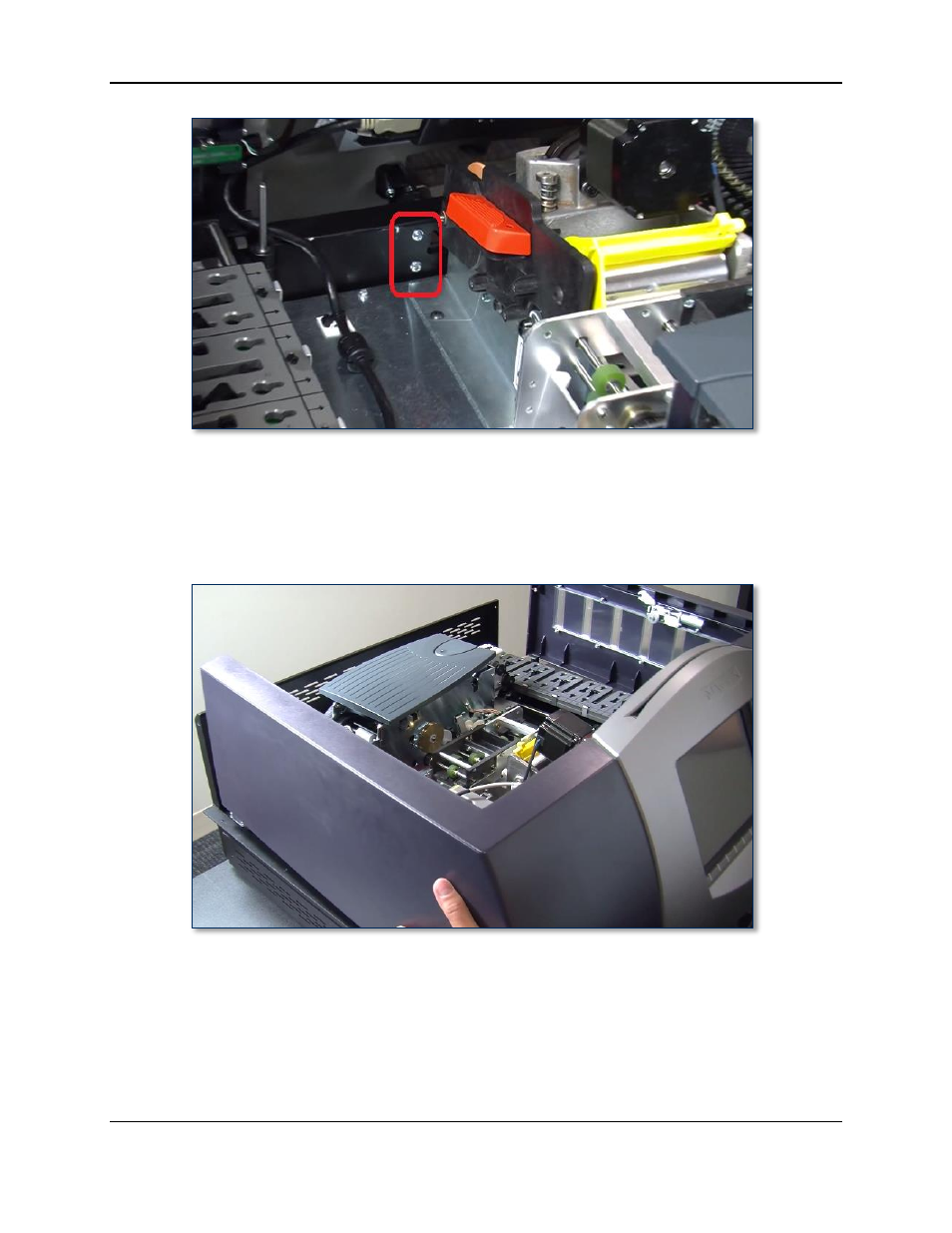

Figure 4-22 - Cover Screws Next to Tipper (REAR VIEW)
15) Use the No. 2 Philips screwdriver to remove the screws and set them aside.
16) Pull the silver portion of the cover forward slightly to release it from the device.
17) Carefully remove the cover by pulling it forward a few inches with both hands, making sure there are
no cables tangled with it, then pull it toward the ceiling and set it aside.
Figure 4-23 - Removing the Cover (FRONT LEFT VIEW)
18) Perform any additional replacement or maintenance steps.
