4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 119
4.16 How to Remove / Re-install the Embedded PC Solid State Drive (SSD)
Approximate time to remove: 5 minutes plus any sub-procedures
Approximate time to re-install: 5 minutes plus any sub-procedures
The embedded PC’s solid state drive (SSD) contains its operating system and software. It is mounted to
the embedded PC in the rear right corner of the lower deck (“tub”) of the device.
To remove the embedded PC’s SSD, follow these steps:
1) Prepare the device for replacing parts by following the steps in section 4.1 How to Prepare the
Device for Removing / Re-installing Modules. At the end, the device should be powered down with
all external cables safely disconnected.
2) Perform the first few steps in section 4.15 How to Remove / Re-install the Embedded PC just to the
point where the SSD is accessible (see Figure 4-100).

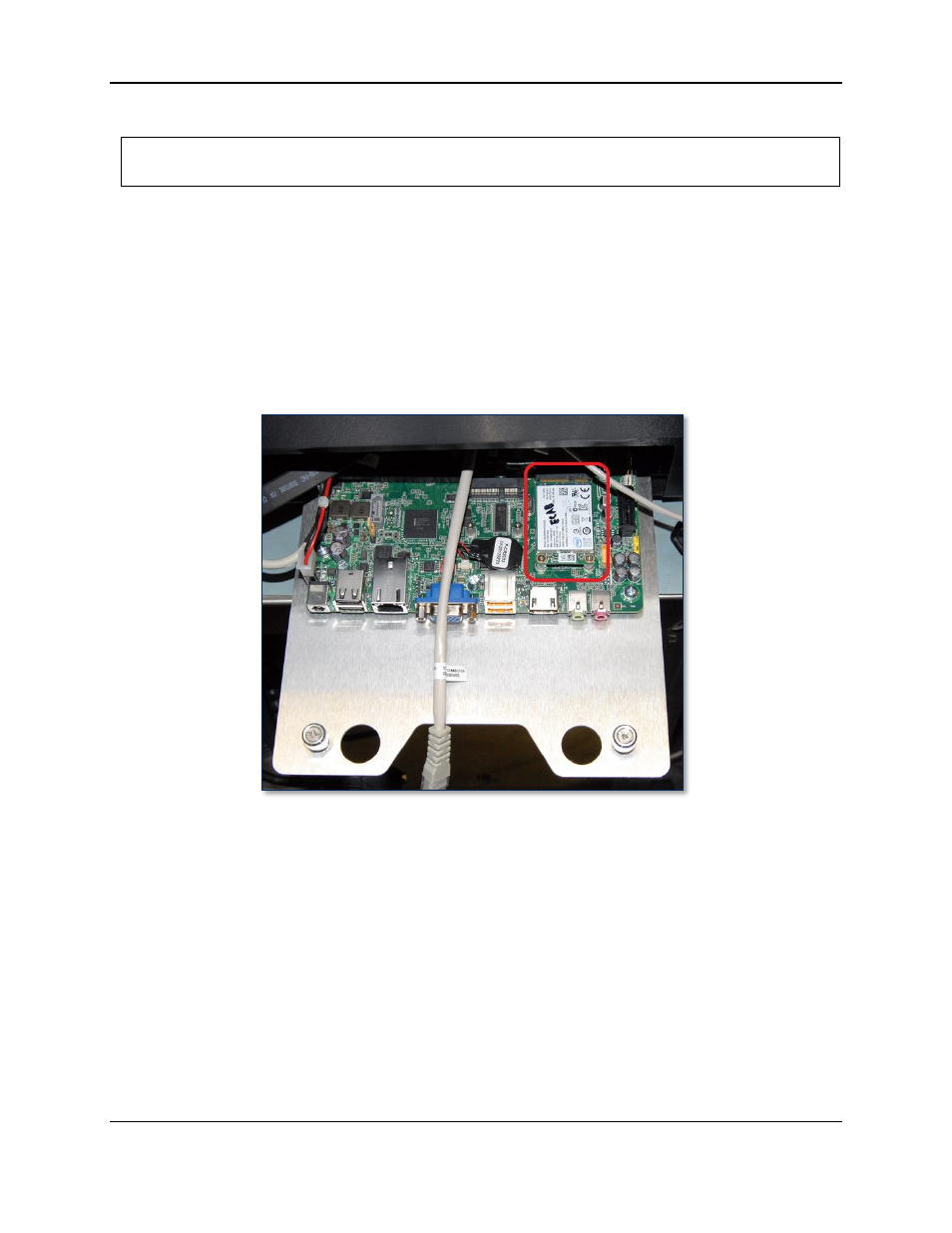

Figure 4-100 - Embedded PC Solid State Drive (TOP VIEW FROM RIGHT)
3) Use the No. 1 Philips screwdriver to remove the two screws securing the SSD. Upon removing the
second screw, the edge of the SSD should pop up on its own. See Figure 4-101.
