4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 108

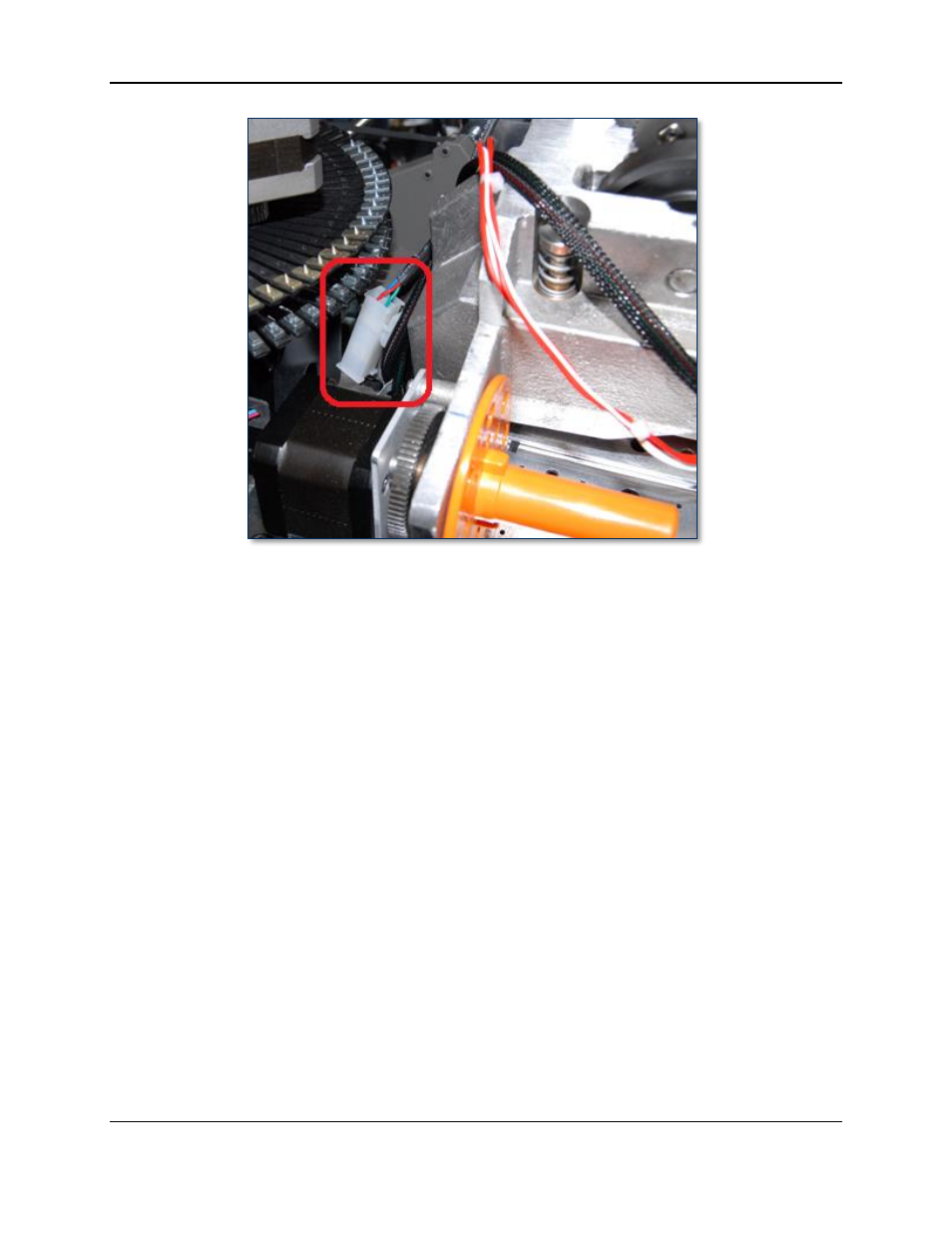

Figure 4-87 - Tipper Top Motor Connector (FRONT VIEW)
17) Remove the four sets of screws and washers that secure the module to the top deck plate, shown in
Figure 4-85.
18) Use both hands to pull the tipper module toward the front of the device several inches to give room to
disconnect the cables plugged in to the breakout circuit board mounted to the exit transport module
behind it (see Figure 4-88). Pay careful attention to any nearby wires as you pull it forward.
