4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 60

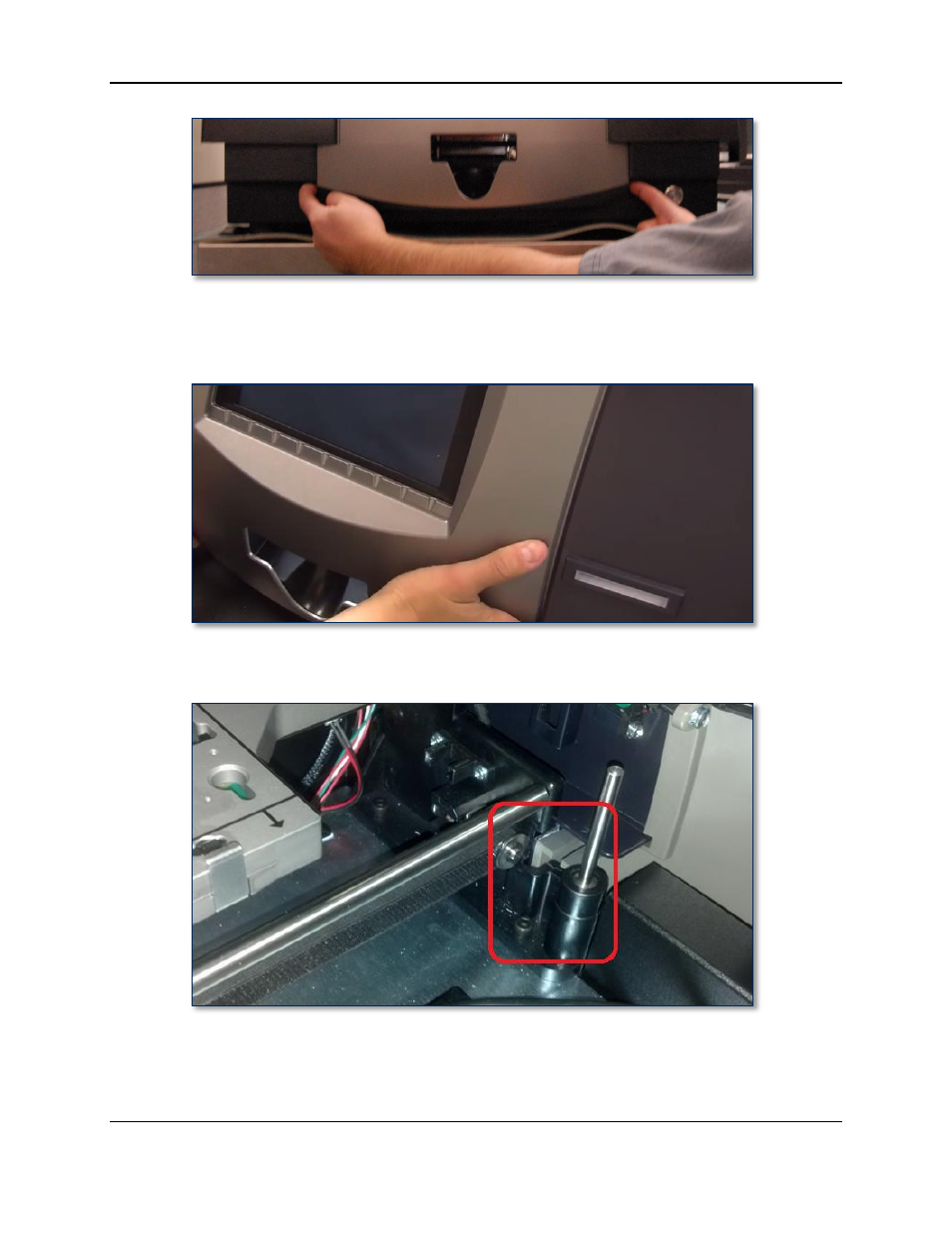

Figure 4-27 - Fitting the Silver Portion of the Cover (FRONT VIEW)
10) “Bump” the front of the silver portion of the cover (just to the right of the card output hopper) with
the palm of your hand to firmly seat the cover in place.
11) Make sure the silver portion of the cover is solidly seated in the slot in the base, and that the darker
portion of the cover is properly seated above it. See Figure 4-28 for reference.
Figure 4-28 - Silver Portion of Cover Properly Seated (REAR LEFT VIEW)
12) Make sure the two sides of the cover roughly line up with their screw holes. This will align the screw
holes in the front of the cover.
