4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 79

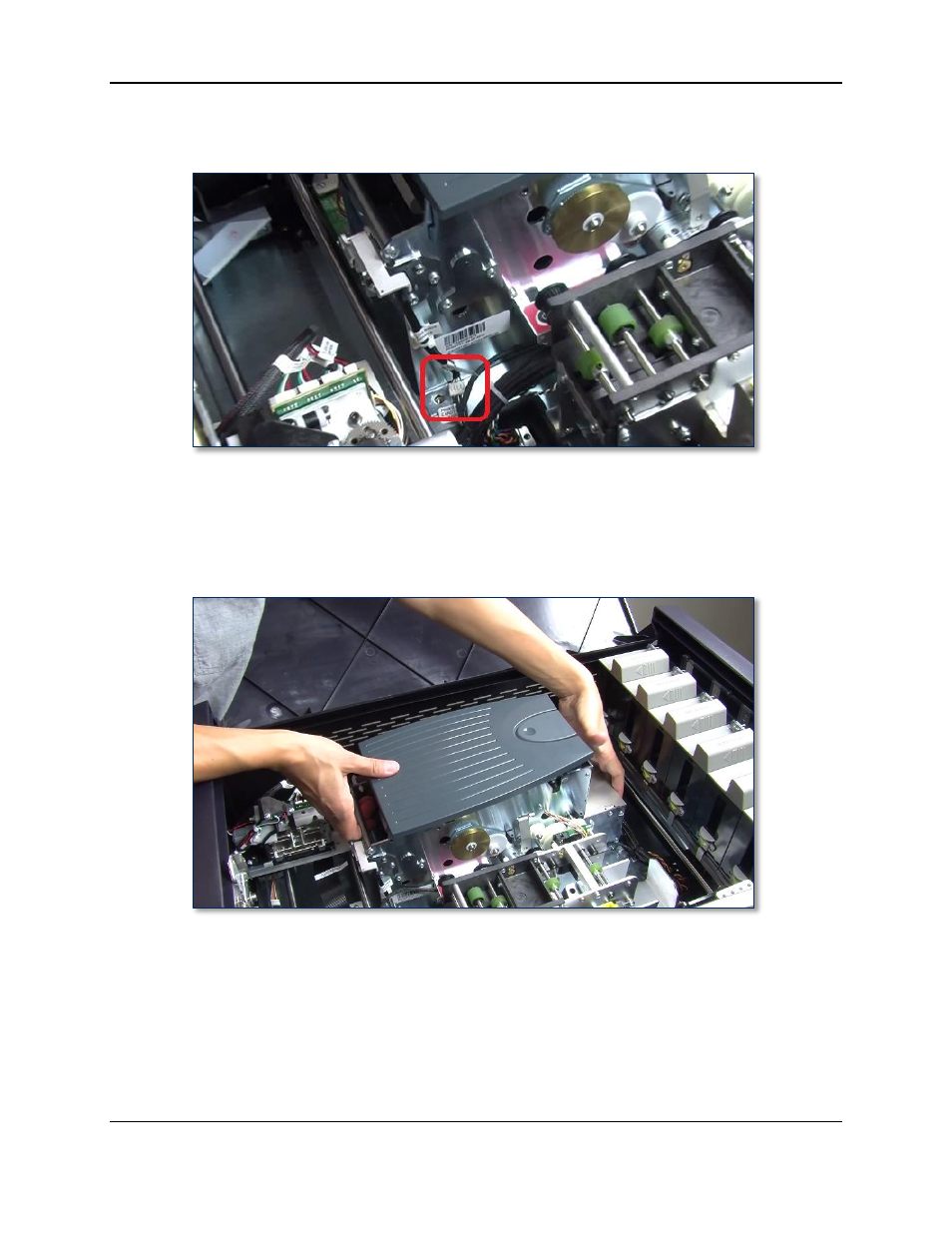

8) Near the front left screw of the image printer, locate the cable labeled Y END SENSOR, shown in
Figure 4-54, and disconnect it.
Figure 4-54 - Image Printer Exit Sensor Connector (TOP LEFT VIEW)
9) Use the 5/32” Allen wrench to unscrew the four screws and washers that attach the four corners of the
image printer to the top deck plate (see Figure 4-51).
10) Use both hands to carefully lift the printer out of the device, making sure no cables catch on it as you
remove it. Set it aside.
