4 - removal and re-installation – MagTek EC2000 99875607 User Manual
Page 129
4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 129

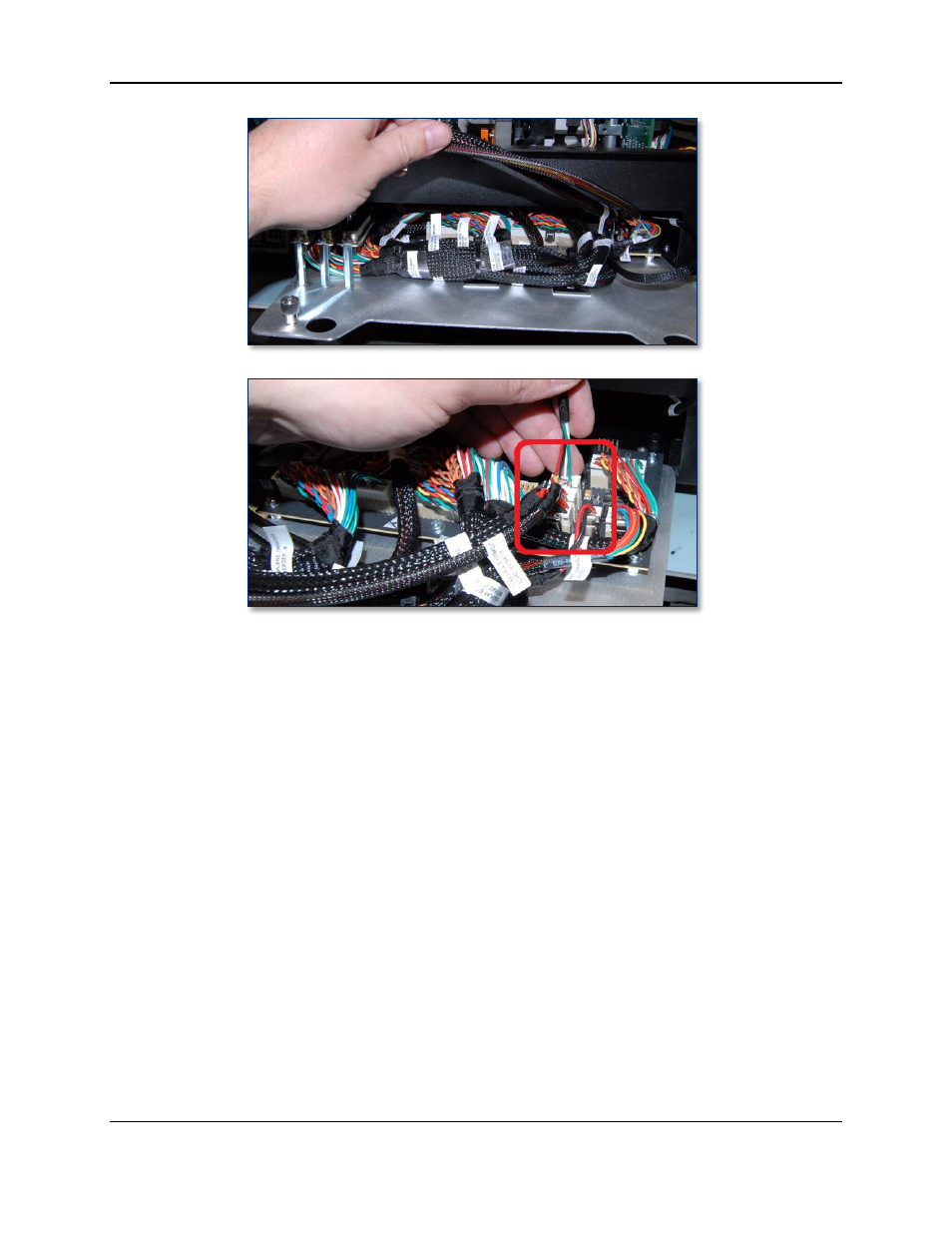

Figure 4-113 - Disconnect Three Cables from Power Controller (LEFT VIEW)
15) Use the finger holes to continue carefully pulling the tray out of the device. Make sure it does not
snag on any cables or other parts. Remove it from the device and set it aside in a static-safe location.
