4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 116

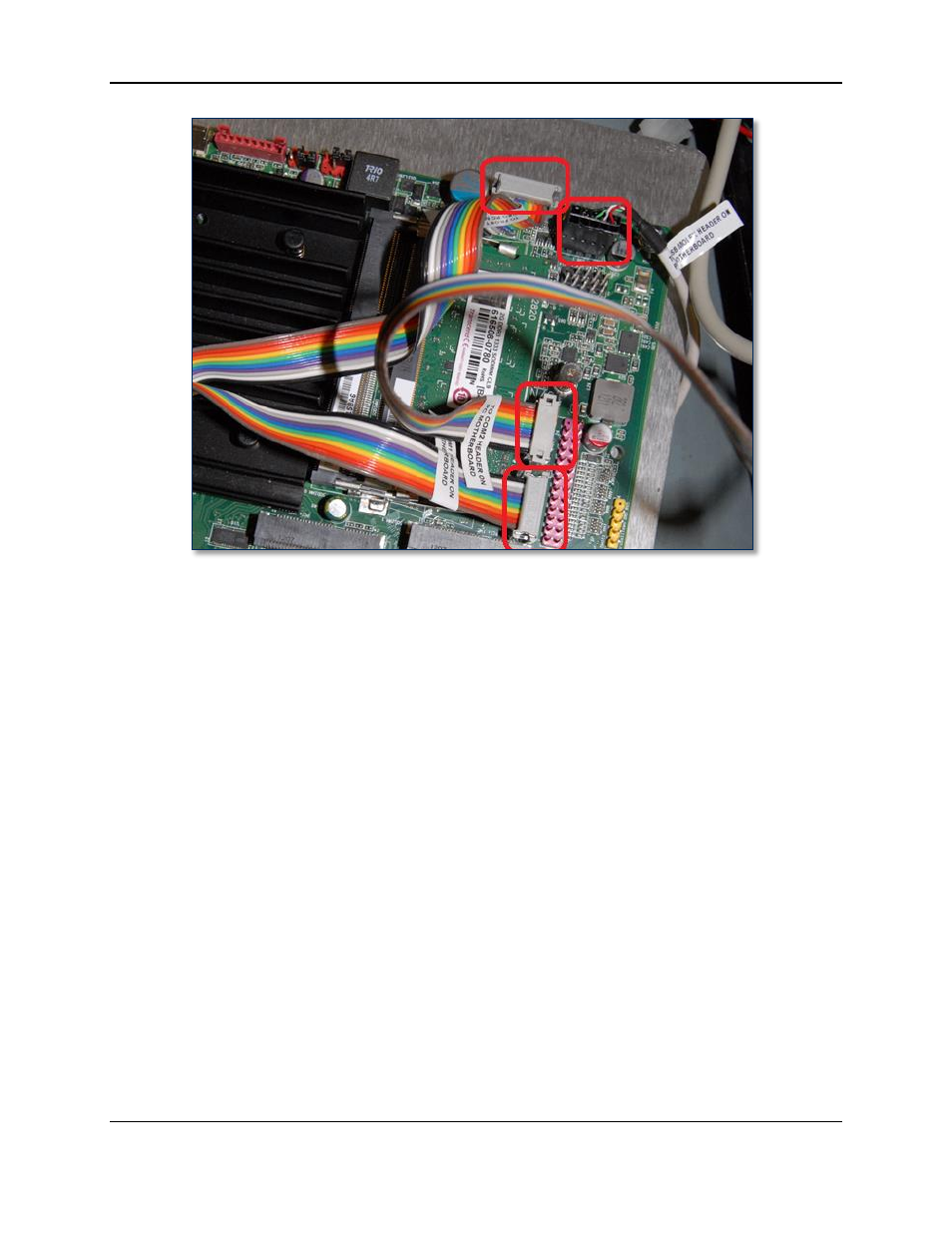

Figure 4-97 - Connectors On Left Half of Embedded PC (TOP VIEW FROM RIGHT)
10) Make sure there are no cables connected to the embedded PC, set it aside on a suitable work surface,
and remove any remaining adhesive.
