4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 95
4) Press the Unload Cartridge button in the Bottom Indent Cartridge section to move the rear indent
cartridge into the unload position. Remove the rear indent cartridge and set it aside in a secure
location, or give it to the customer for temporary storage or secure disposal.
5) Prepare the device for replacing parts by following the steps in section 4.1 How to Prepare the
Device for Removing / Re-installing Modules. At the end, the device should be powered down with
all external cables safely disconnected.
6) Remove the cover by following the steps in section 4.4 How to Remove / Re-install the Cover.
7) Carefully disconnect the embosser’s cable from the top deck, making sure not to break any wires.

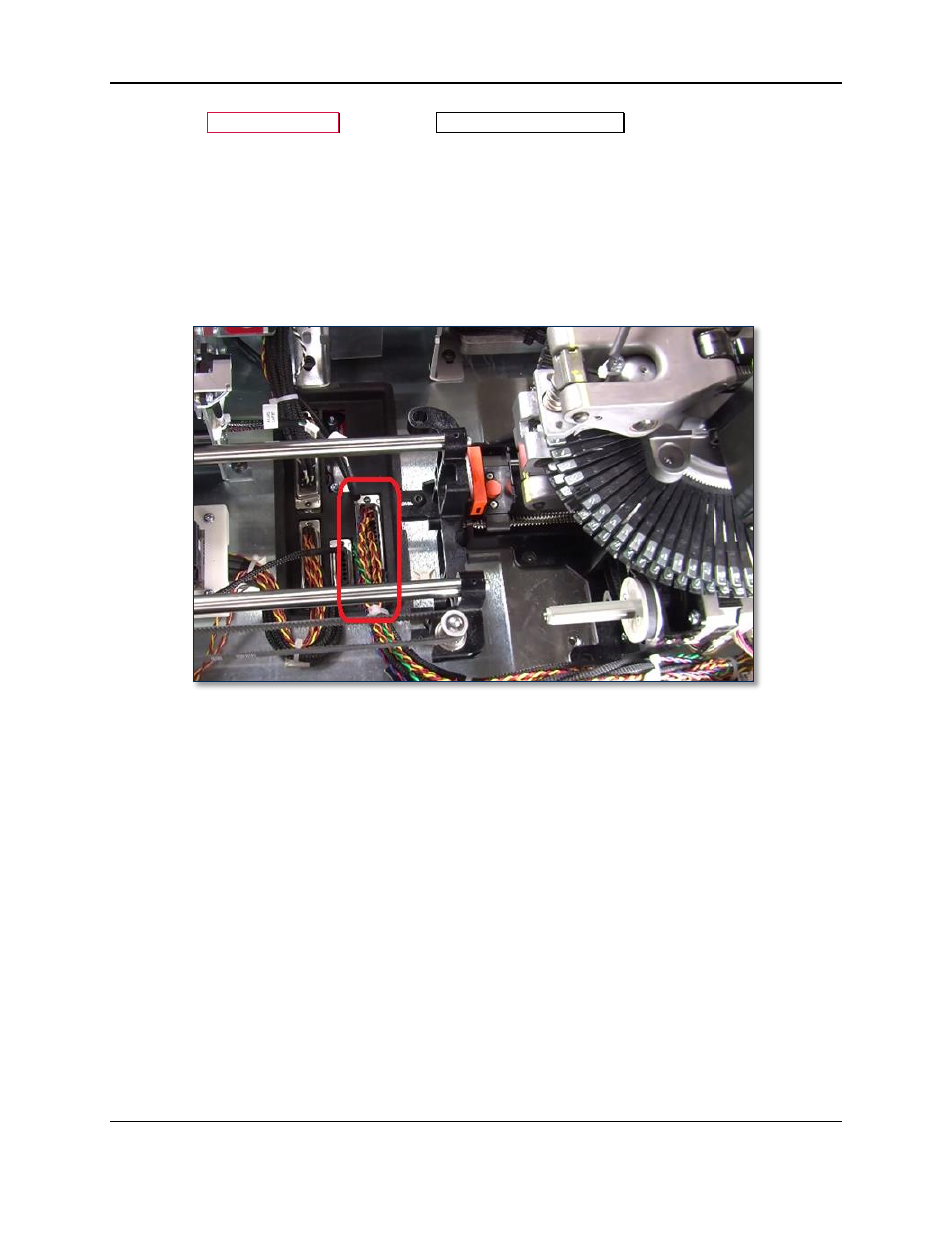

Figure 4-72 shows the cable as seen from the left side of the device.
Figure 4-72 - Embosser Cable (TOP VIEW FROM LEFT)
8) Re-route the embosser cable so the connector rests on top of the XY transport rails, as shown in
Figure 4-73.
