4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 54

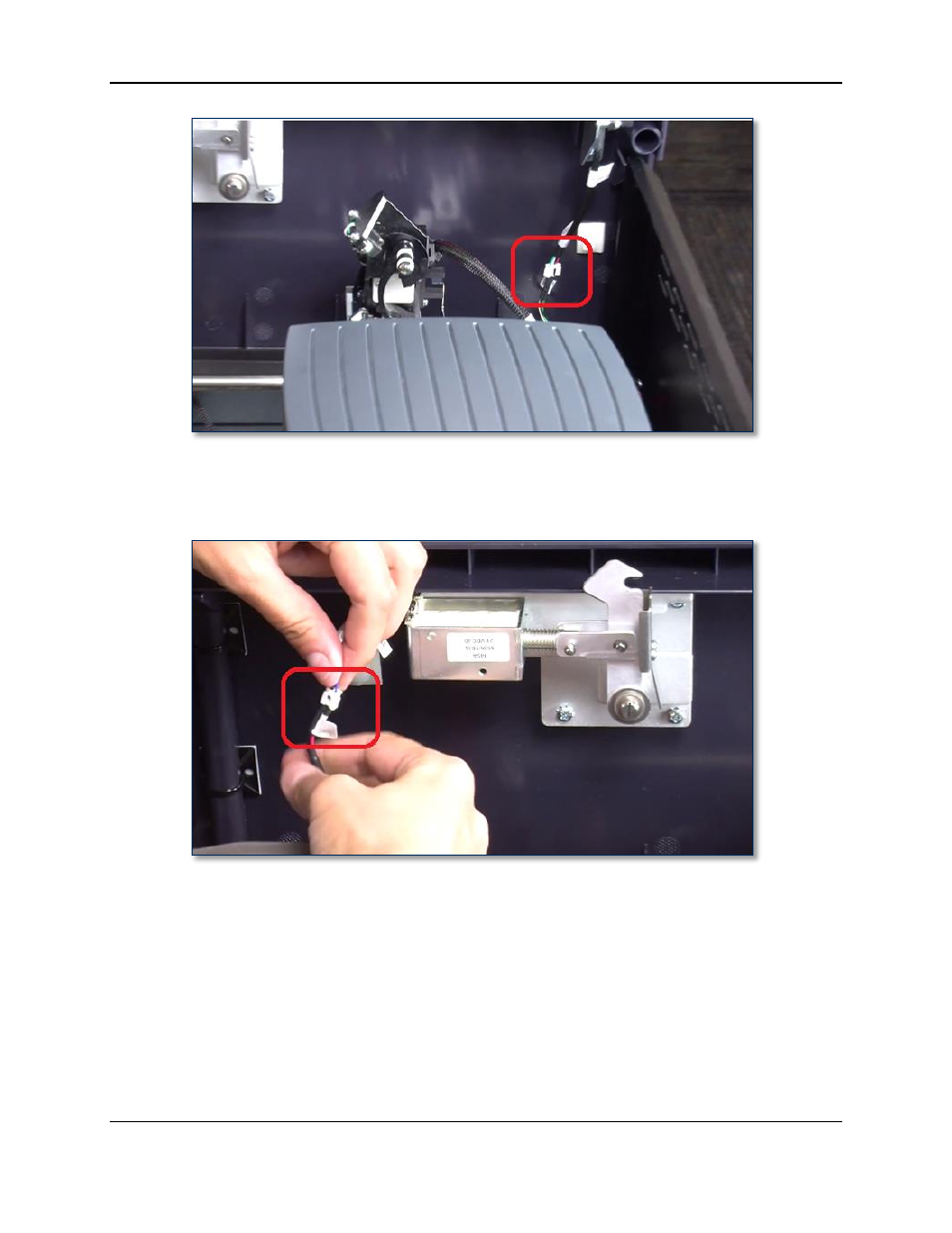

Figure 4-16 - Top Case Open Sensor Cable (RIGHT VIEW)
11) Disconnect the Door 2 Solenoid cable connected to the top access door latch on the left side of the
device. Disengage the bottom part of the cable from the clip on the wall of the cover.
Figure 4-17 - Door 2 Solenoid Cable (RIGHT VIEW)
13) Use the No. 2 Philips screwdriver to remove the fastener that secures the cover to the metal plate on
the rear face of the base. It can be found in the upper rear right of the device behind hopper 1, as
shown in Figure 4-17.
