4 - Removal and Re-installation

ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual


Page 52

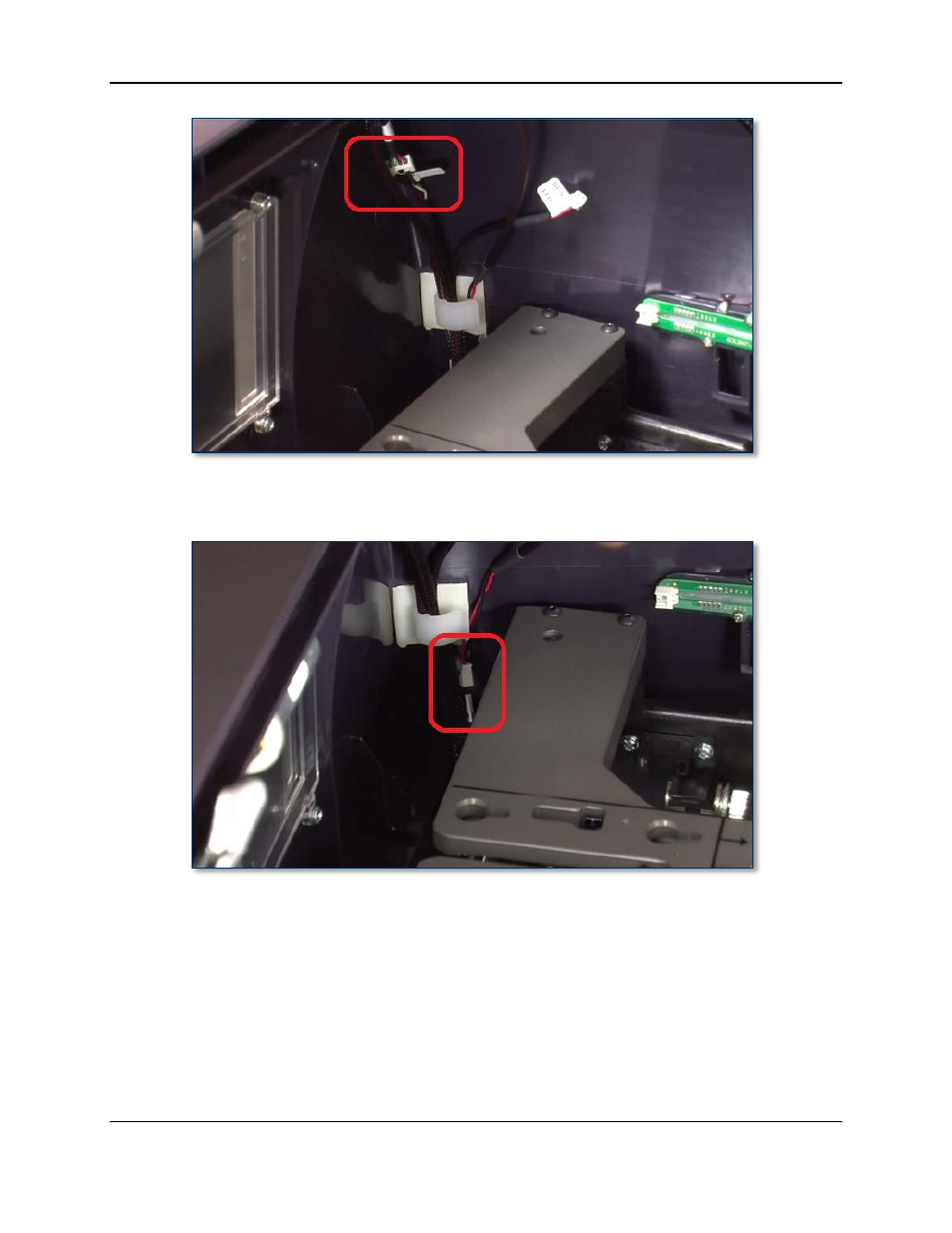

Figure 4-12 - Exception Card Entry Sensor Cable (REAR VIEW)

7) Disconnect the Door 1 sensor cable in the front right corner of the device.

Figure 4-13 - Door 1 Sensor Cable (REAR VIEW)

8) Disconnect the touchscreen VGA video cable and the power cable from the rear of the touchscreen.

If there is any silicone adhesive on the cables or their connections, remove it completely.
