4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 84

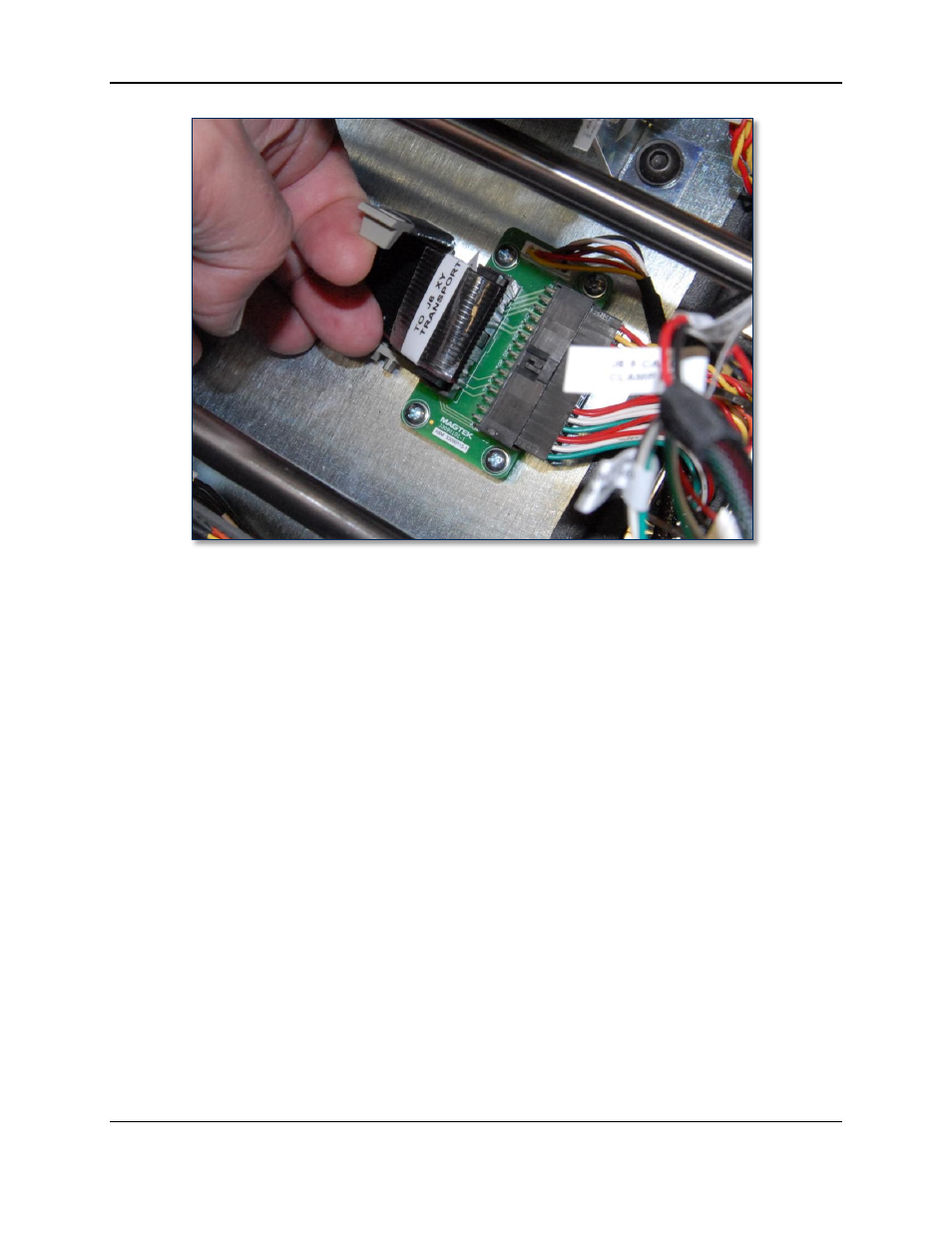

6) Disconnect the ribbon cable from the breakout board on the top deck plate, and set the cable aside.
7) If there is adhesive on any of the connectors, peel or gently scrape it off and discard it.
