4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 128

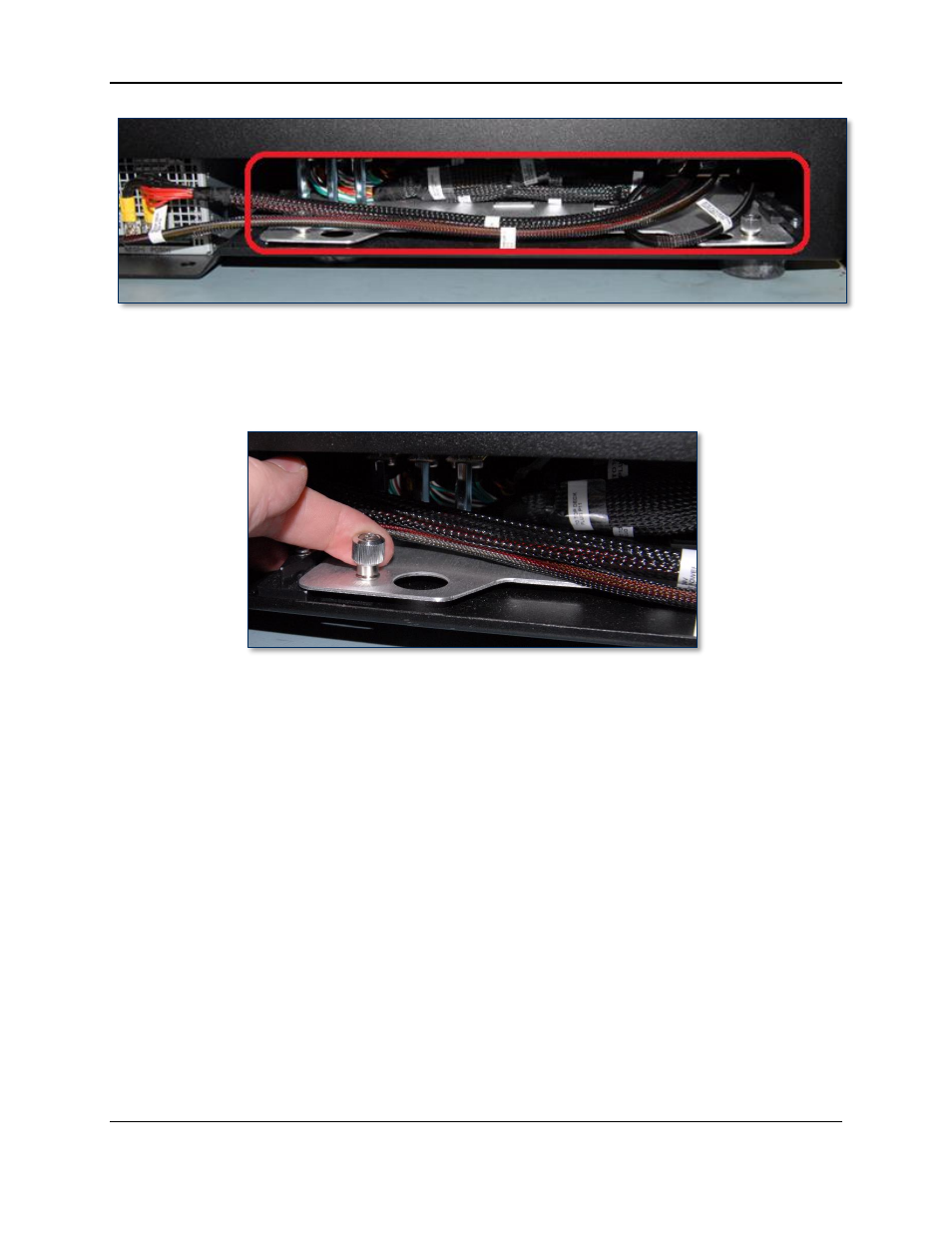

Figure 4-112 - Power Controller (LEFT VIEW)
12) Unscrew the thumb screws on the front and rear of the power controller to disengage it from the
bottom deck. The screws are part of the power controller tray and should spring up when they are
disengaged. Do not attempt to remove them from the tray.
13) Lift the cables that run across the edge of the power controller tray to the power supply, and use the
finger holes to pull the power controller out a few inches to expose the three connectors near the front
of the printed circuit board, as shown in Figure 4-113.
14) Disconnect the cables from the three connectors, and move them out of the way toward the outsides
of the left side access door.
