4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 139
5) Remove the four screws that secure the touchscreen retaining plate to the cover (see Figure 4-126)
and set them aside.

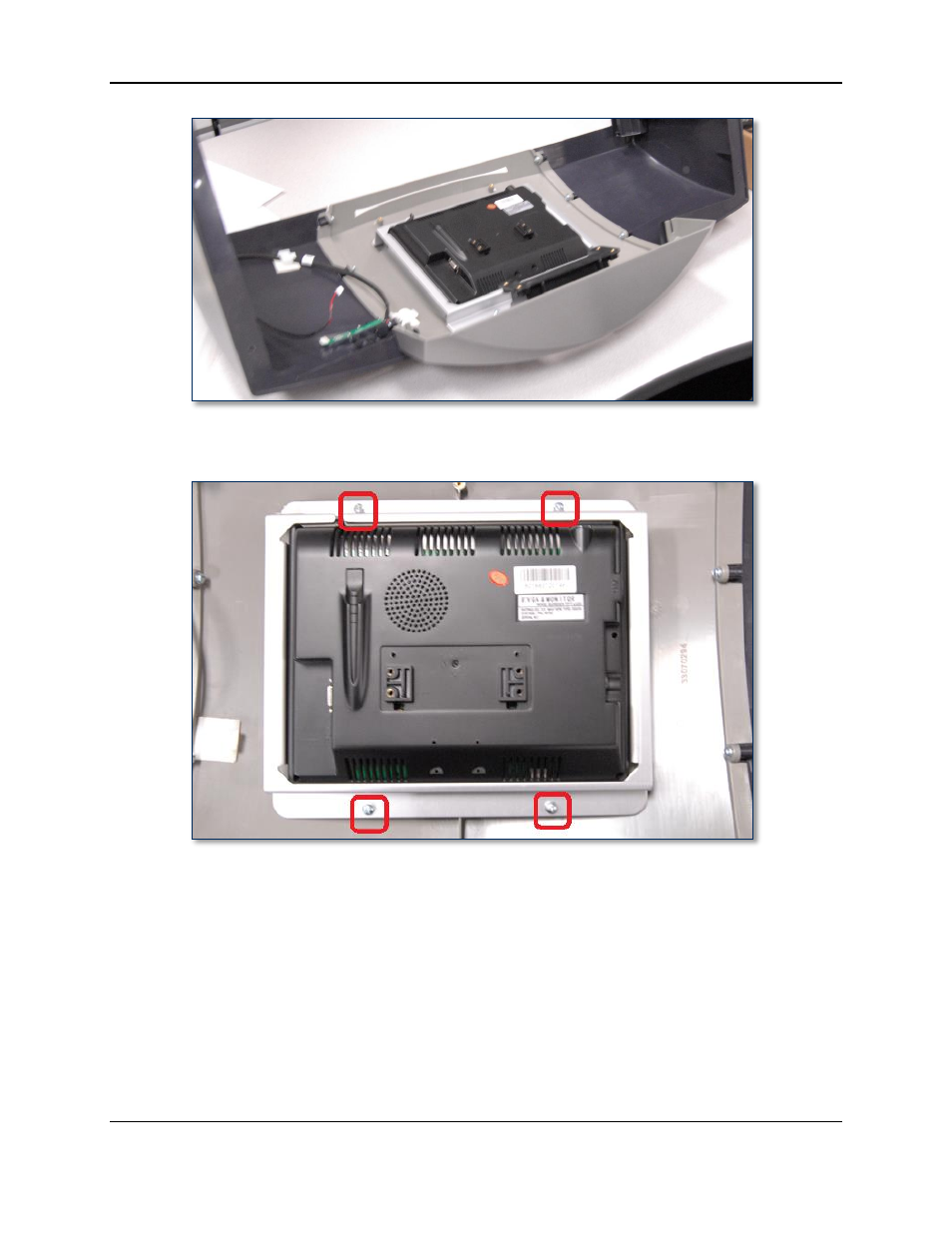

Figure 4-126 - Touchscreen Retaining Plate Screws (REAR VIEW)
6) Remove the touchscreen retaining plate and set it aside.
7) Remove the touchscreen and set it aside.
