4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 140
To re-install the touchscreen, follow these steps:
1) Place the cover on a protected surface with the front touchscreen opening toward the floor.
2) Put the touchscreen in place.
3) Put the touchscreen retaining plate over the touchscreen so the screw holes line up with the screw
holes in the cover.
4) Use the No. 2 Philips screwdriver to insert and tighten the screws.
5) Perform any other service that requires the cover to be removed.
6) Re-install the cover by following the steps in section 4.4 How to Remove / Re-install the Cover.
7) Remember to secure the touchscreen cables with silicone as shown in Figure 4-127.

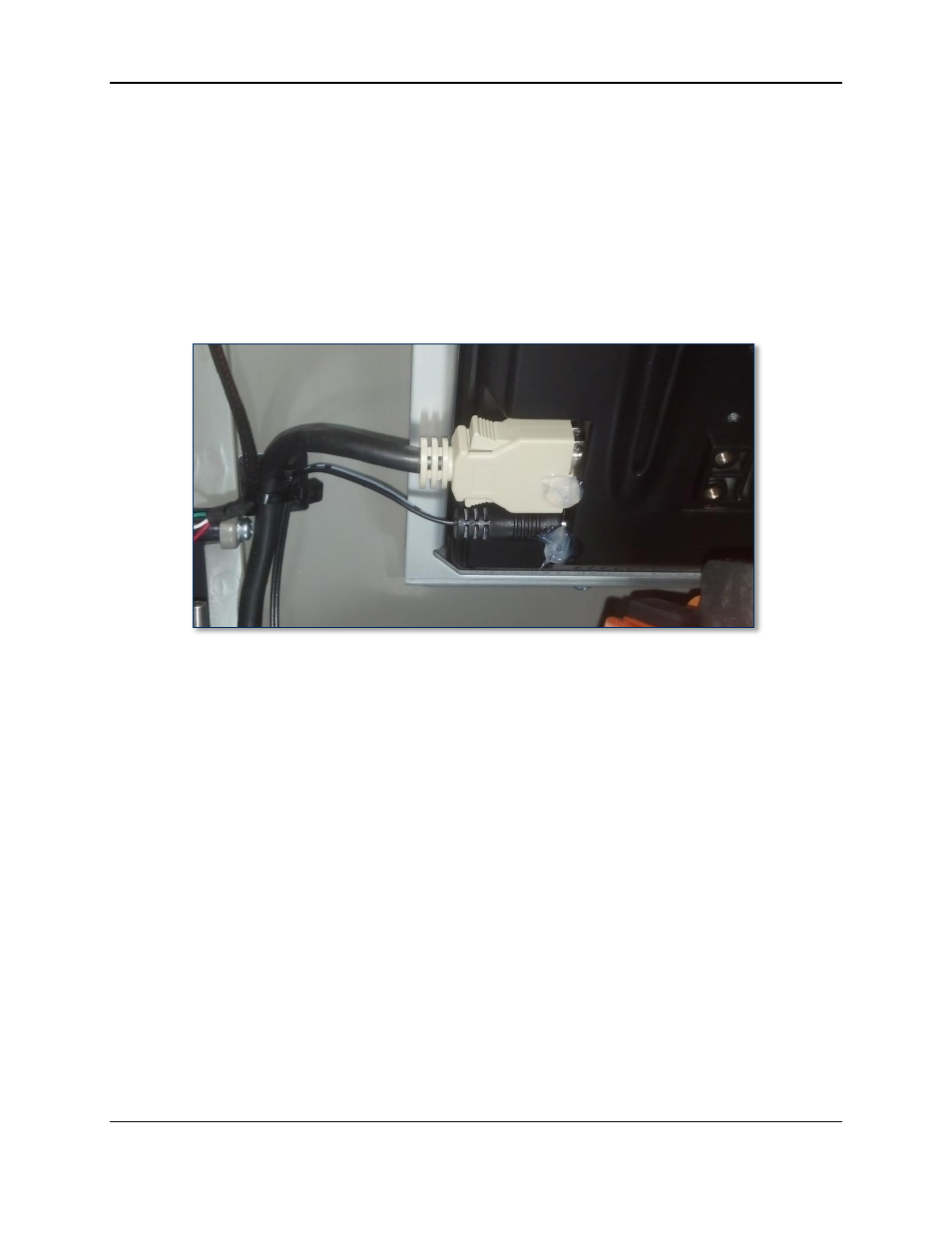

Figure 4-127 - Silicone Adhesive On Touchscreen Connectors (REAR VIEW)
8) Perform any other service that requires the device to be powered down and open.
9) Close the top access door.
10) Re-connect the power cable, network cable, and any security hardware.
11) Power up the device.
12) Use the touchscreen to navigate through several menus to make sure it functions properly.
13) Perform any relevant adjustments from section 5 Adjustments, notably section 5.1 How to
Calibrate the Touchscreen.
