4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 104

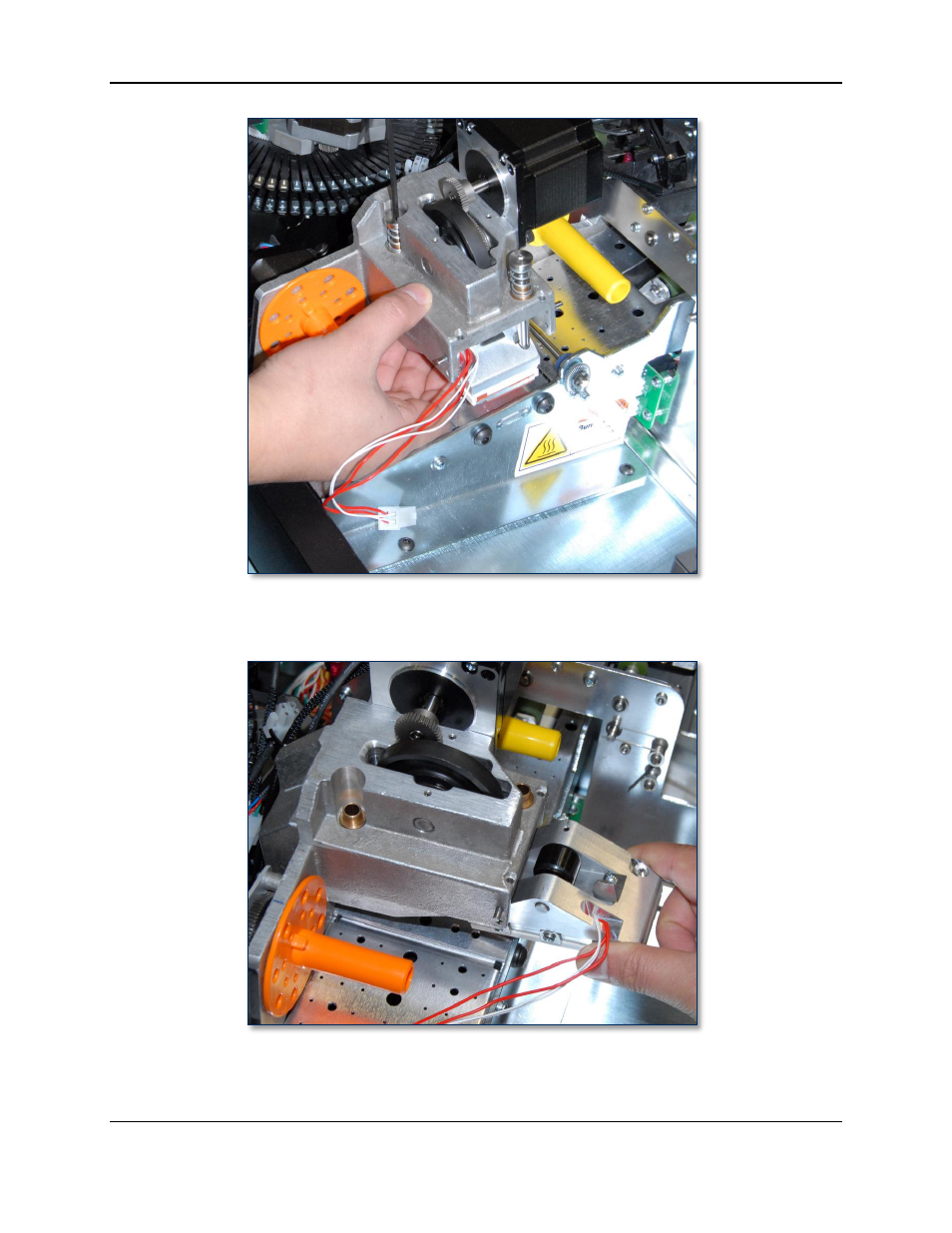

Figure 4-82 - Supporting the Tipper Heater While Removing / Tightening (RIGHT VIEW)
10) Slide the tipper heater out the right side of the tipper.
Figure 4-83 - Removing / Re-inserting the Tipper Heater (TOP VIEW FROM FRONT)
