4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 94
4.11 How to Remove / Re-install the Embosser Module
Approximate time to remove: 15 minutes plus any sub-procedures
Approximate time to re-install: 30 minutes plus any sub-procedures
The embosser module, located at the front left corner of the device, punches raised and indented
characters into cards as they are held by the XY transport.

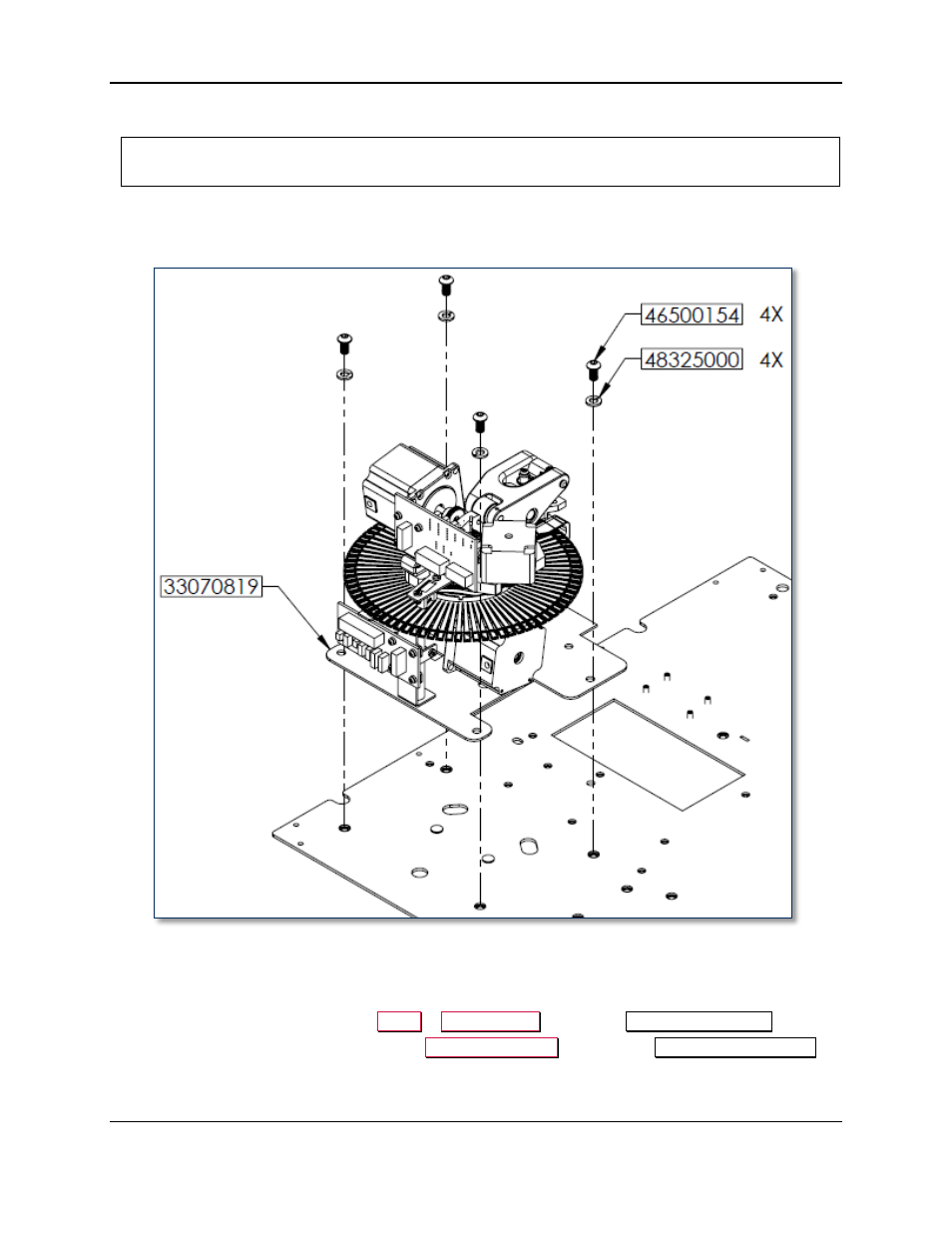

Figure 4-71 - Embosser Module (FRONT RIGHT VIEW)
To remove the embosser module, follow these steps:
1) Power on the device and open the top access door.
2) From the touchscreen, navigate to Menu > Maintenance to open the Maintenance Menu page.
3) If the device has a top indenter, press the Unload Cartridge button under Top Indent Cartridge to
move the front indent cartridge into the unload position. Remove the top indent cartridge and set it
aside in a secure location or give it to the customer for temporary storage or secure disposal.
