4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 83

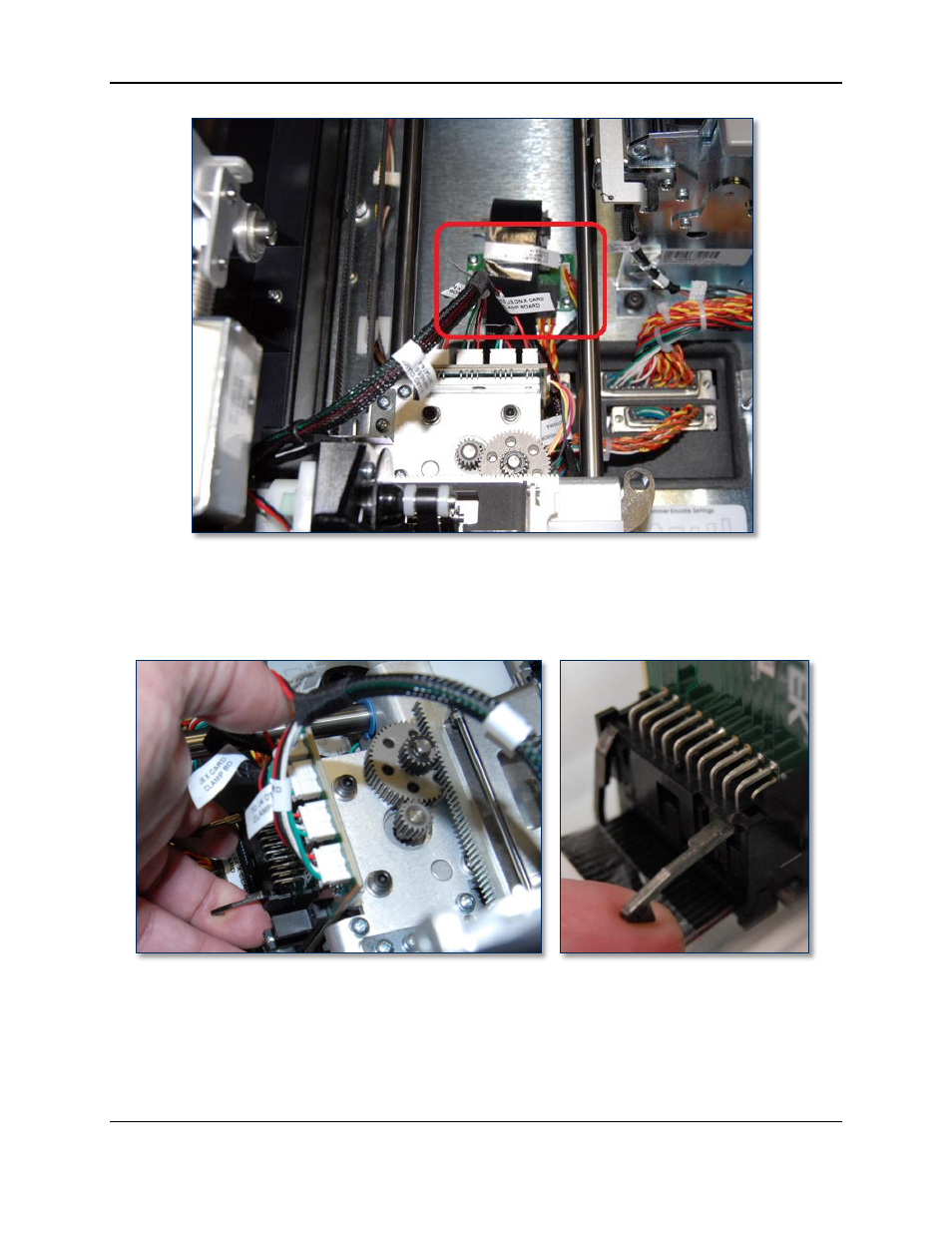

Figure 4-59 - XY Transport at Front of Device Exposing Breakout Board (TOP VIEW)
4) On the rear side of the XY transport, locate the two retaining clips that secure the ribbon cable to the
transport. Lift both clips firmly toward the ceiling to unlock and eject the cable from the circuit
board, then disconnect the ribbon cable. See Figure 4-60.
Figure 4-60 - Unlocking XY Transport Ribbon Cable (TOP VIEW FROM LEFT / REAR LEFT VIEW)
5) Open the clip that secures the ribbon cable to the top deck plate.
