2 - Introduction
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 11
2.6 About Installation & Operation
For detailed instructions about planning, installation, operation, and basic maintenance, see 99875600
EC2000 User Installation and Operation Manual.
2.7 How to Open the Top Access Door
For instructions to open the top access door, see 99875600 EC2000 User Installation and Operation
Manual.
Some procedures require removing the top access door completely. For removal instructions, see section
4.2 How to Remove / Re-install the Top Access Door.
2.8 How to Safely Move Transports By Hand
Although the MCP Commands page is the safest way to move parts within the EC2000 (see section
2.9.1 How to Use the MCP Commands Page), occasionally it is necessary to move parts by hand. To
prevent injury or damage to the device, follow these guidelines:

If you need to move the hopper transport or XY transport by hand, pull only on their serrated drive
belts as shown in Figure 2-2. This reduces the risk of damaging the transport.

If you need to move the XY transport along its tracks, gently pull the carriage to the left side of the
device before moving so it won’t catch on the image printer.

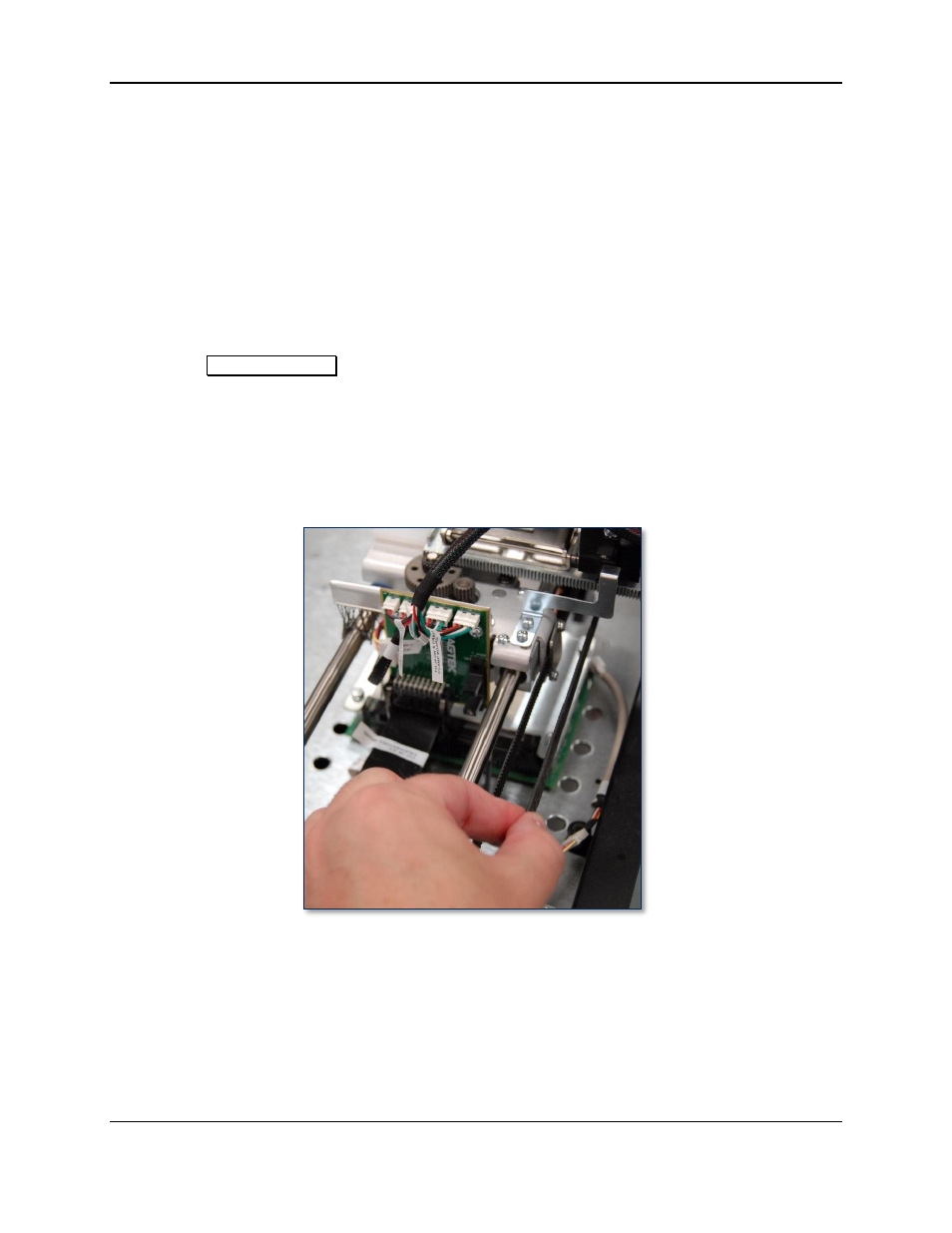

Figure 2-2 - Move Transports By Pulling Drive Belts

You can rotate the rollers on all transports by hand to push/pull cards to where they can be removed.

If a card is stuck in the hopper transport but has not yet gone into the image printer, one easy way to
remove the card is to remove one or two hoppers next to the hopper transport, then pull on its
triangular belt to move the card toward the hopper deck.

If a hopper transport has moved a card mostly into the image printer but the card has become stuck,
remove the card forward through the image printer (toward the XY transport). Do not try to reverse
cards from the image printer into the hopper transport.
