4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 44
4.2 How to Remove / Re-install the Top Access Door
Approximate time to remove: 5 minutes plus any sub-procedures
Approximate time to re-install: 5 minutes plus any sub-procedures
The top access door is the large lockable door in the top of the cover that secures the user-serviceable
areas inside the device, while allowing users to access and replace consumable items like image printer
ribbons and card stock. Some service procedures require removing the top access door to give
unobstructed access to certain components.

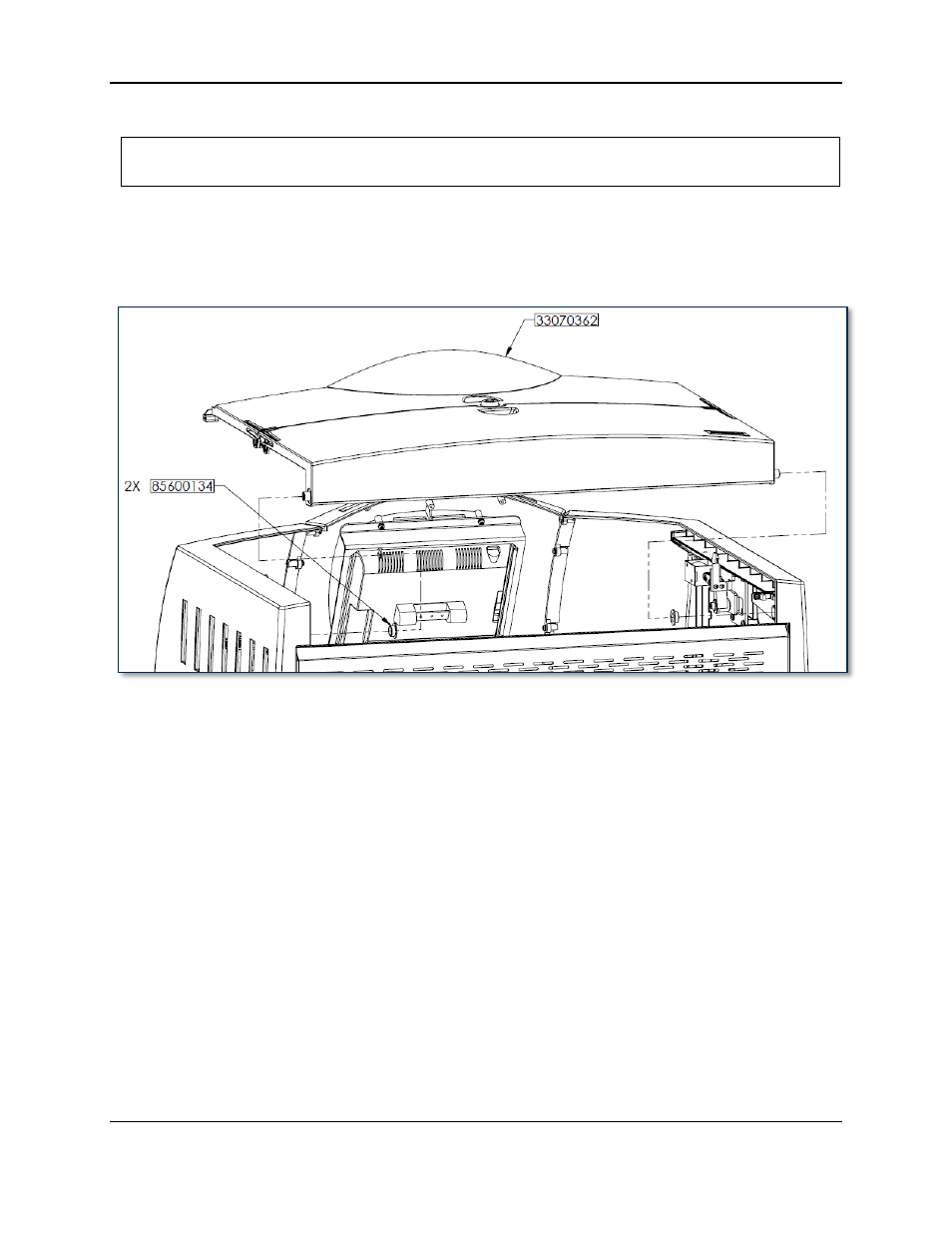

Figure 4-1 - Top Access Door (REAR VIEW)
To remove the top access door, follow these steps:
1) Unlock the top access door (see section 2.7 How to Open the Top Access Door).
2) Open the top access door halfway (just past the latches on either side of the cover).
