4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 69
6) Move the hopper transport to the front of the device, just past hopper 7 and before it rotates to the
manual feed slot (see Figure 4-31 and section 2.8 How to Safely Move Transports By Hand).

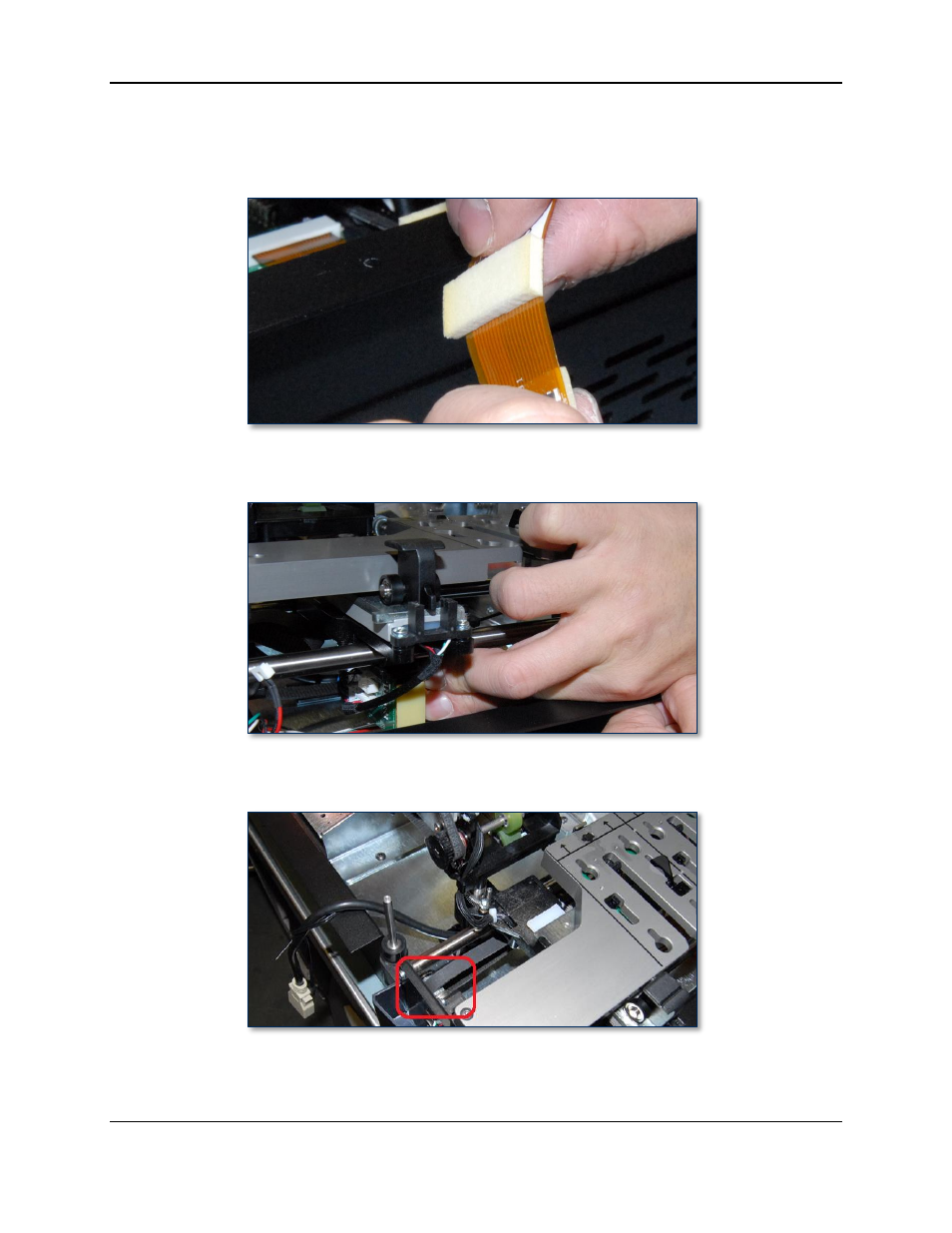

7) Stick ¼” of double-stick tape to the hopper transport flex cable just behind the plug.
8) Plug the flex cable into the hopper transport so it points toward the rear of the device, and stick the
double-stick tape to the hopper transport’s motor as shown.
9) Make sure the hopper transport belt is looped around the drive gear at the front of the hopper
transport module as shown.
10) Route the EXC HOME SENS cable from the front of the hopper module to the right of the device,
around the hopper mounting legs, then toward the rear of the device as shown in Figure 4-41.
