4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 133

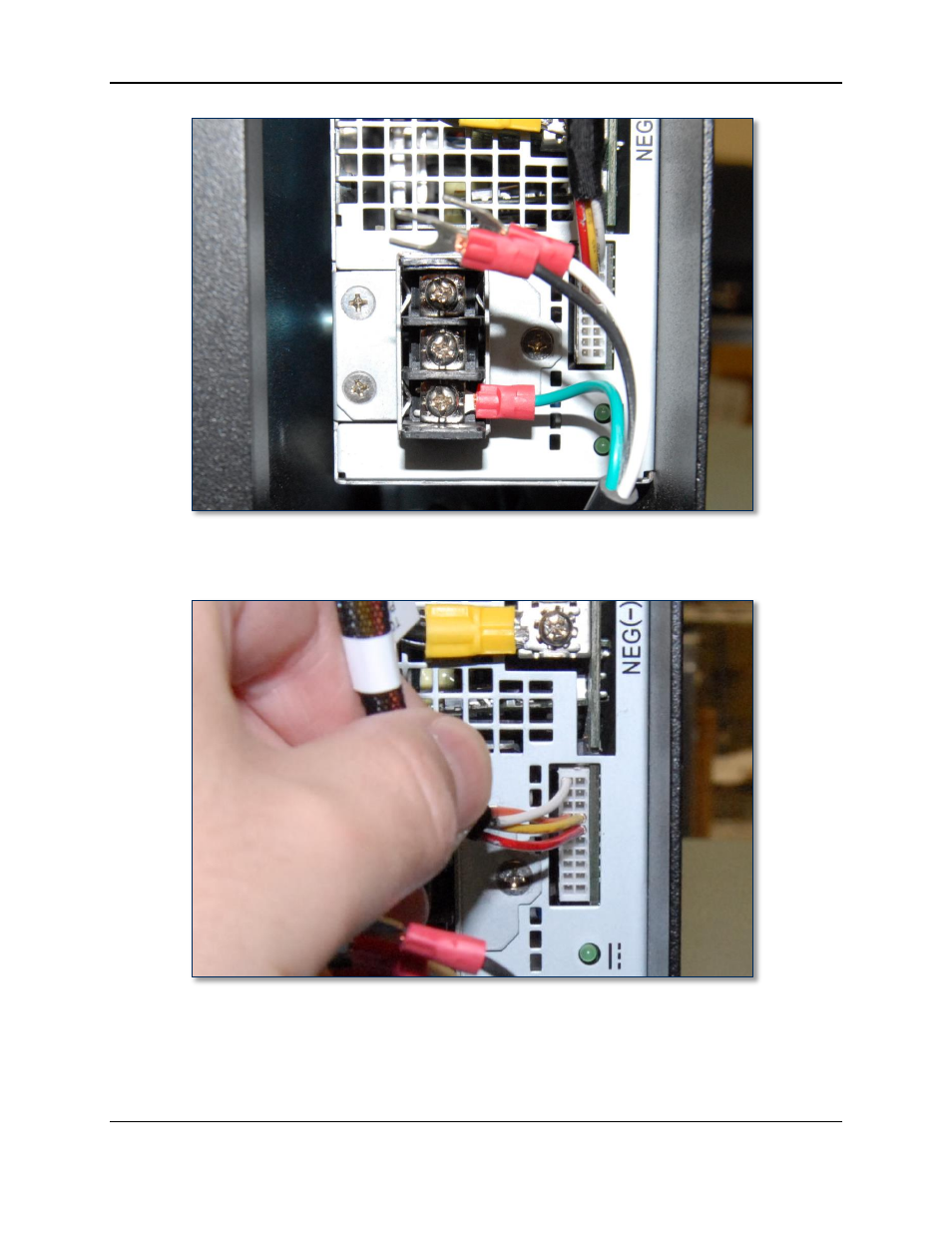

Figure 4-119 - Power Supply Input Wires (LEFT VIEW)
8) Unplug the white plastic power supply control and monitoring connector shown in Figure 4-120.
Figure 4-120 – Power Supply Control and Monitoring Connector (LEFT VIEW)
9) Use the No. 2 Philips screwdriver to loosen the screws holding the power supply output cables, then
disconnect the cables. See Figure 4-121.
