4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 113
4.15 How to Remove / Re-install the Embedded PC
Approximate time to remove: 15 minutes plus any sub-procedures
Approximate time to re-install: 15 minutes plus any sub-procedures
The embedded PC provides the user interface on the EC2000’s touchscreen and connects to the Main
Logic Board (MLB) to communicate with sensors and motors within each of the device’s modules. It is
located in the rear right of the lower deck (“tub”) in the device, and is mounted to a tray that slides into
two tracks built in to the bottom of the lower deck.

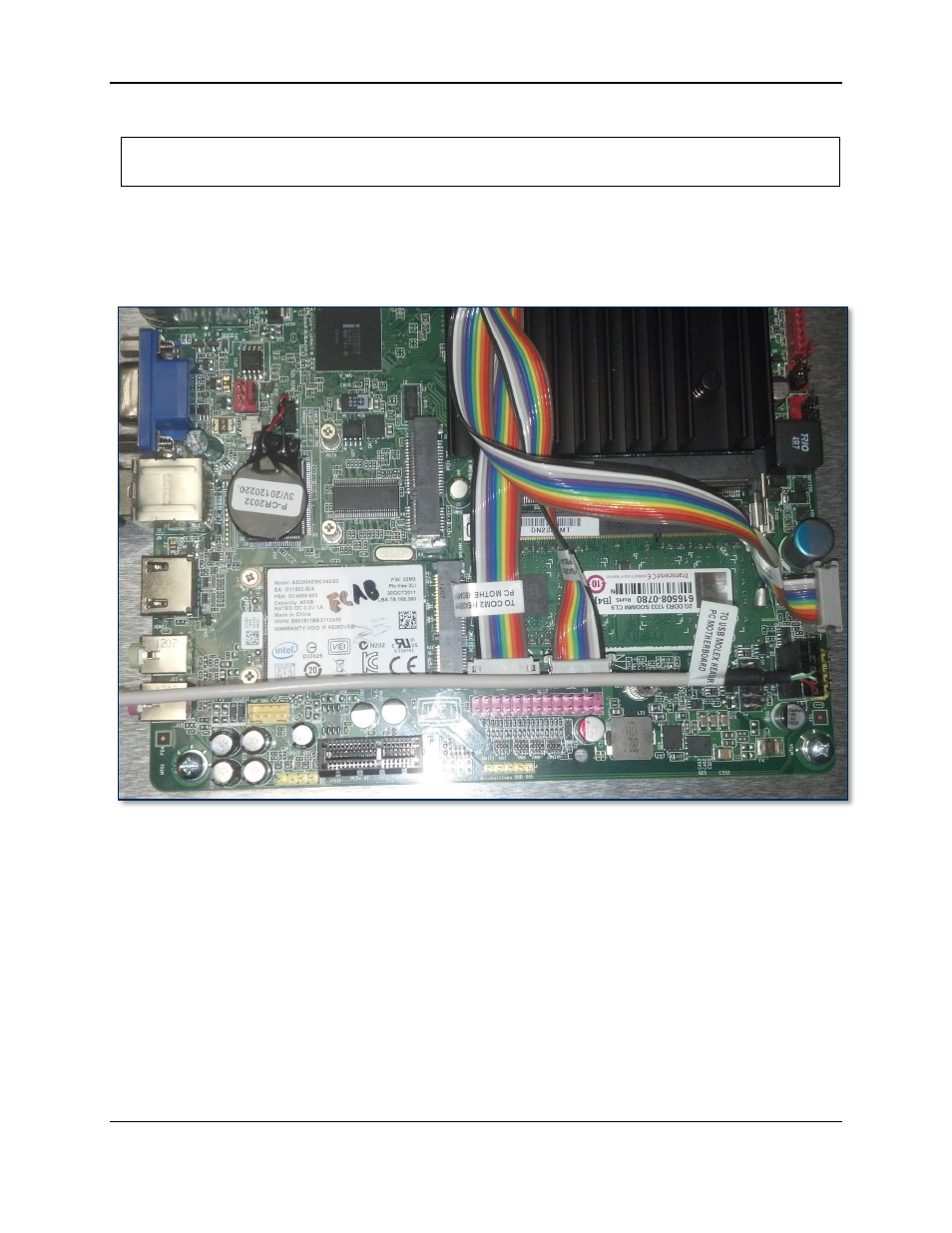

Figure 4-92 - Embedded PC (TOP VIEW FROM REAR)
To remove the embedded PC, follow these steps:
1) Prepare the device for replacing parts by following the steps in section 4.1 How to Prepare the
Device for Removing / Re-installing Modules. At the end, the device should be powered down with
all external cables safely disconnected.
2) Open the right side access door by following the steps in section 4.3 How to Remove / Re-install
the Side Access Doors.
3) Locate the embedded PC behind the right side access door, toward the rear of the device.
4) Loosen the two thumb screws securing the embedded PC tray to the lower deck (see Figure 4-93)
until they pop up. Do not attempt to remove them from the tray.
