4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 49
6) Being careful not to pinch any cables or wires between the screwdriver and the screw, use the long
No. 2 Philips screwdriver to unscrew the two thumb screws.
7) Lower the side access door to free its bottom tabs from the cover, remove it, and set it aside (see
Figure 4-8).

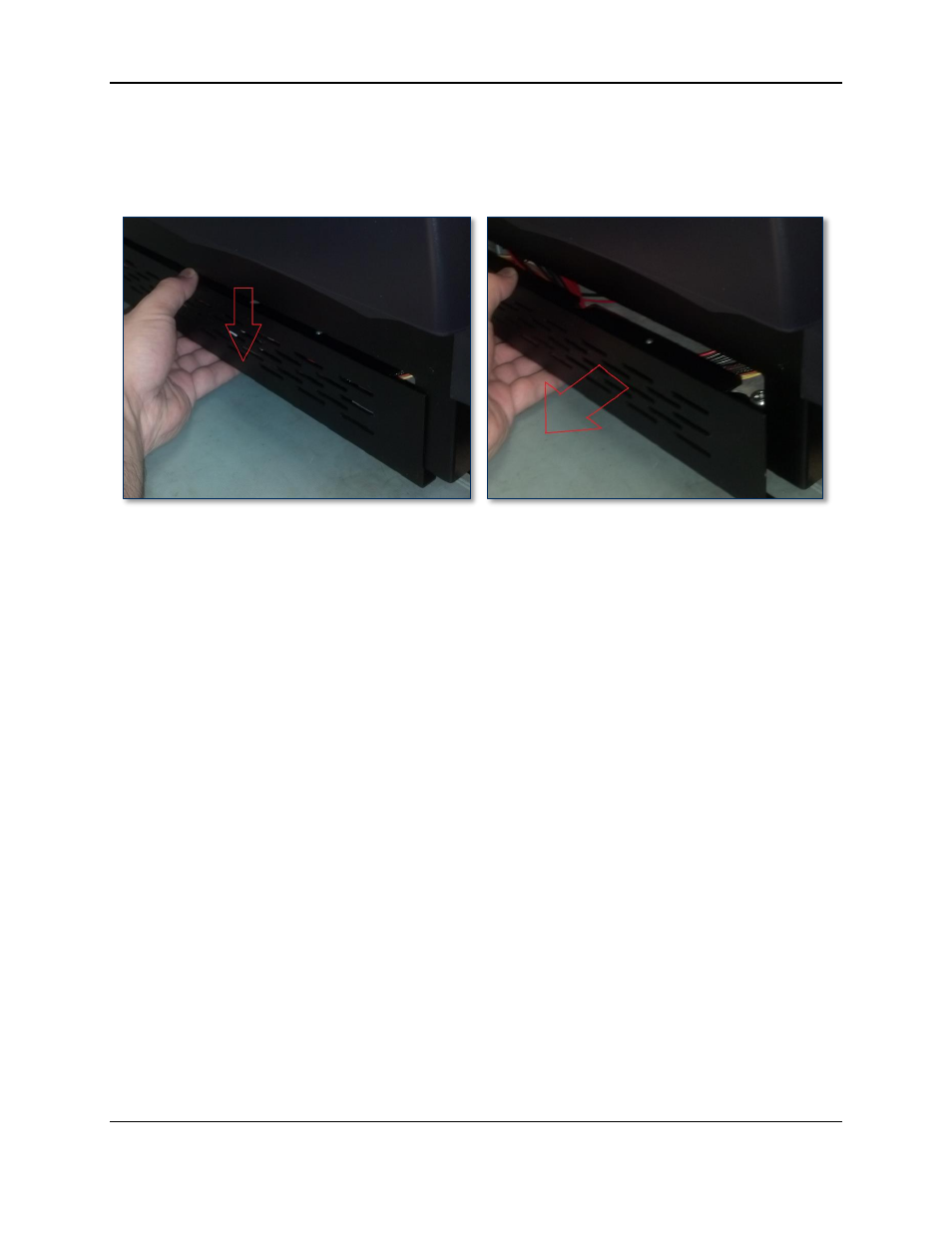

Figure 4-8 - Removing the Left Side Access Door (FRONT LEFT VIEW)
To close the side access doors, follow these steps:
1) Orient the side access door straight up and down like it will be on the EC2000 cover.
2) Slide the side access door’s locking tabs into their slots on the bottom of the EC2000’s cover. You
may need to move it forward and back along the cover to find the place where the tabs insert.
3) Hold the side access door up (in place) with one hand.
4) Use the long No. 2 Philips screwdriver to tighten the rear thumb screw.
5) Use the long No. 2 Philips screwdriver to tighten the front thumb screw.
6) Tug on the side access door to make sure it is secure.
7) Remove any props under the device’s feet, and return it to its original location.
