4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 82
4.8 How to Remove / Re-install the XY Transport Ribbon Cable
This section provides information for replacing just the XY transport ribbon cable, which occasionally
must be replaced without replacing the entire module. For instructions on removing and re-installing the
entire XY transport module, see section 4.9 How to Remove / Re-install the XY Transport.

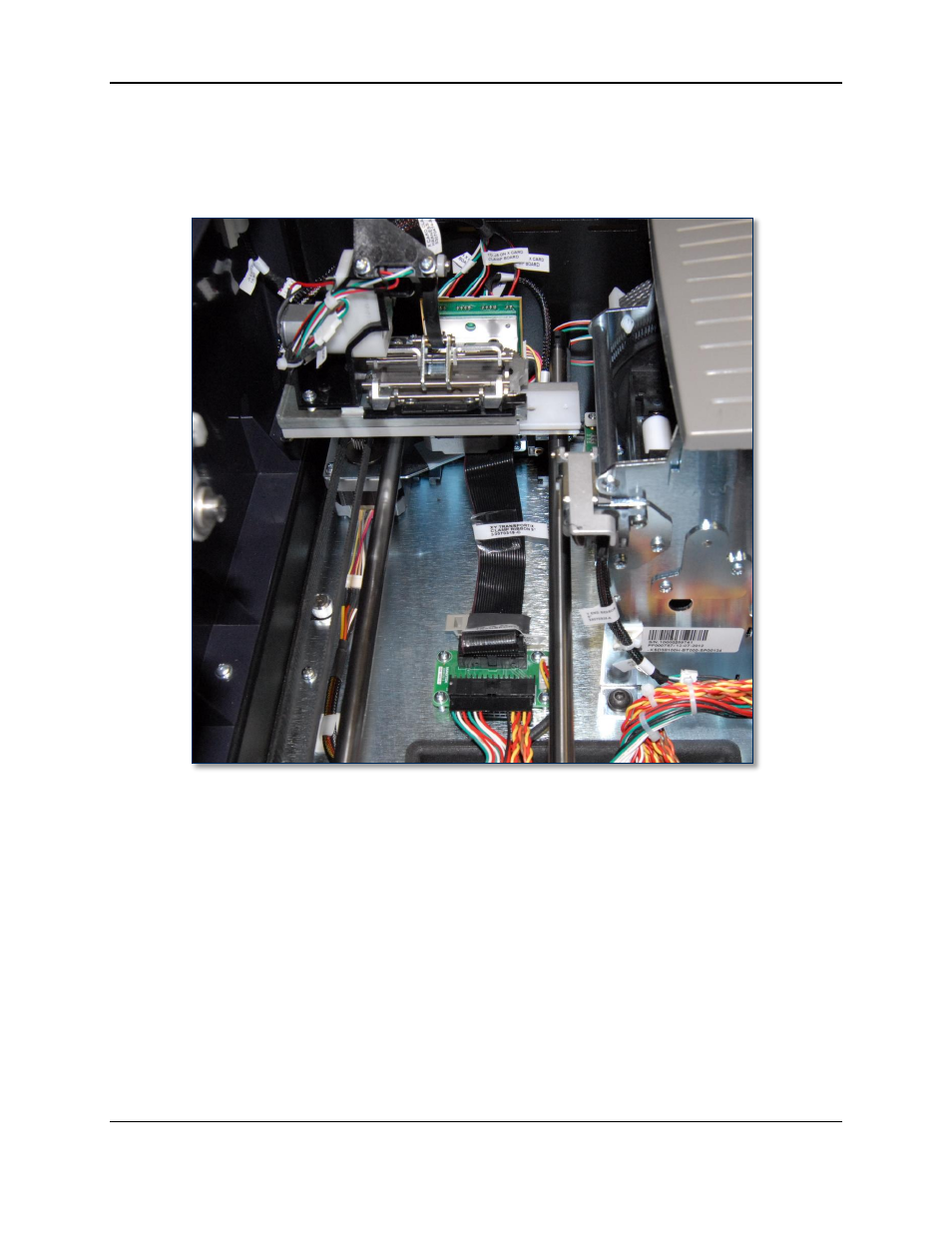

Figure 4-58 - XY Transport Showing Ribbon Cable (FRONT VIEW)
To remove the XY transport module’s ribbon cable, follow these steps:
1) Prepare the device for replacing parts by following the steps in section 4.1 How to Prepare the
Device for Removing / Re-installing Modules. At the end, the device should be powered down with
all external cables safely disconnected.
2) Open the top access door by following the steps in section 2.7 How to Open the Top Access Door.
3) Move the XY transport to the front of the device to expose its cable and its connection to the circuit
board (“breakout board”) on the base plate of the device (see Figure 4-59 and section 2.8 How to
Safely Move Transports By Hand).
