4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 77
4.7 How to Remove / Re-install the Image Printer Module
Approximate time to remove: 15 minutes plus any sub-procedures
Approximate time to re-install: 15 minutes plus any sub-procedures
The image printer, located in the rear center of the device, takes blank card stock from the hopper
transport, encodes any required data onto the card, produces images on both sides, and ejects the card out
the other side to be retrieved by the XY transport.

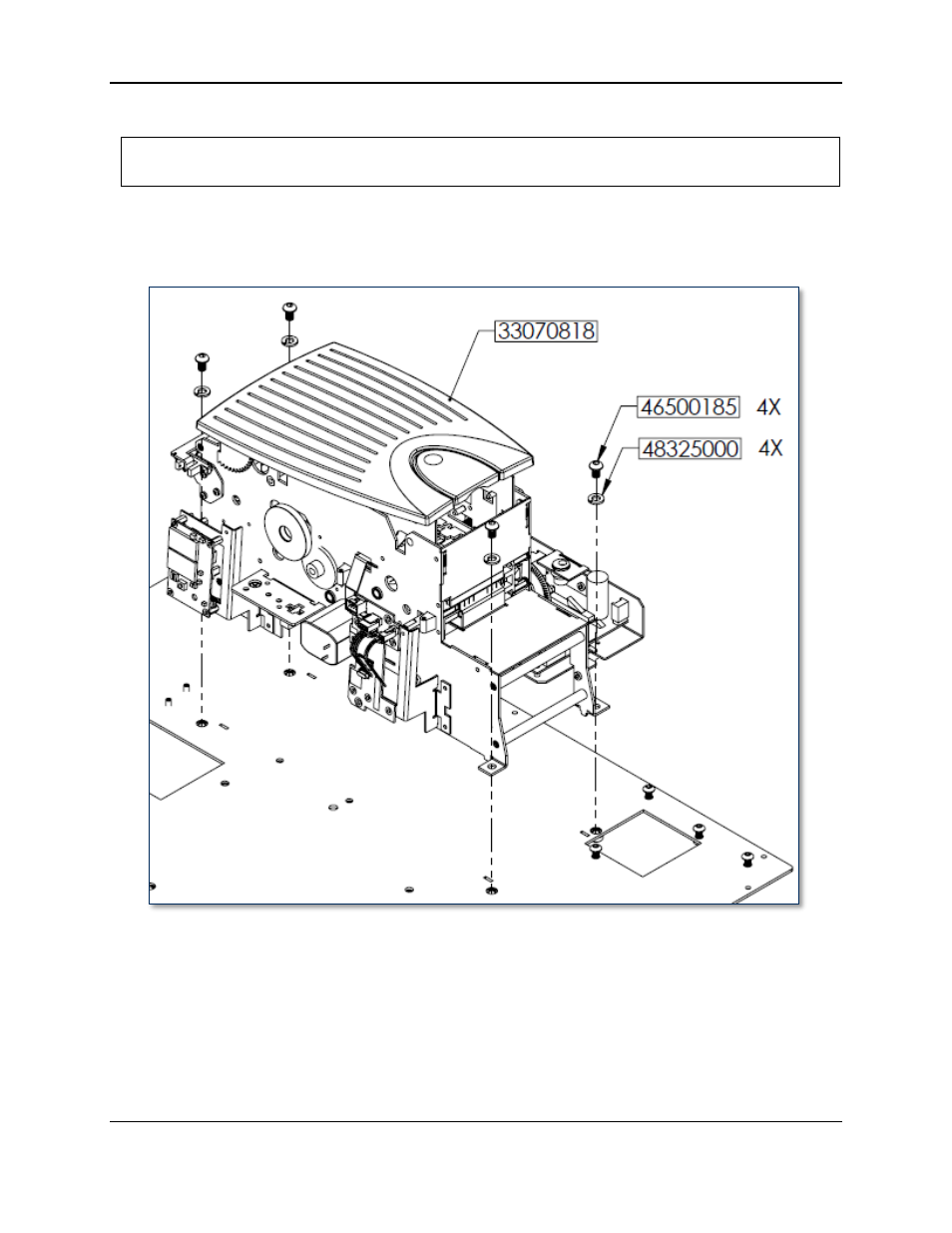

Figure 4-51 - Removing / Re-installing the Image Printer (FRONT RIGHT VIEW)
Follow these steps to remove the image printer module:
1) If you are replacing any modules that do NOT require silicone adhesive, replace those first. That will
reduce the risk of breaking the image printer power connector’s adhesive during other service.
2) Prepare the device for replacing parts by following the steps in section 4.1 How to Prepare the
Device for Removing / Re-installing Modules. At the end, the device should be powered down with
all external cables safely disconnected.
