4 - Removal and Re-installation

ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual


Page 103

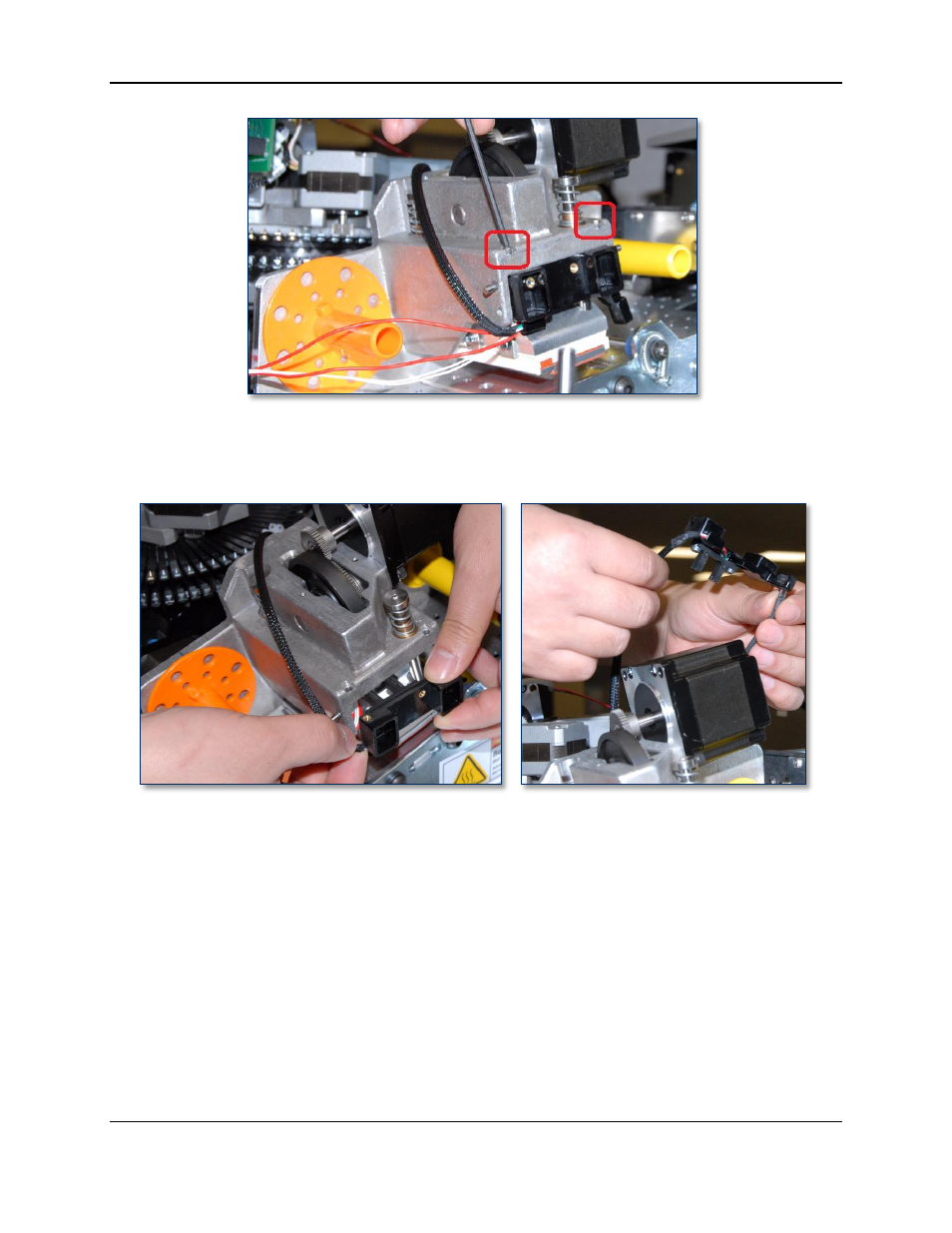

Figure 4-80 - Tipper Sensor Screws (FRONT RIGHT VIEW)

8) Carefully pull the tipper sensor out of the right side of the tipper housing, and move it out of the way

by looping it up and over the top of the tipper module.

Figure 4-81 - Removing and Re-installing the Tipper Sensor (FRONT RIGHT VIEW)

9) Use the 1/8” L-handle Allen wrench to remove the two spring-loaded posts that hold the tipper heater

in the tipper module, and set them aside.
