4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 73

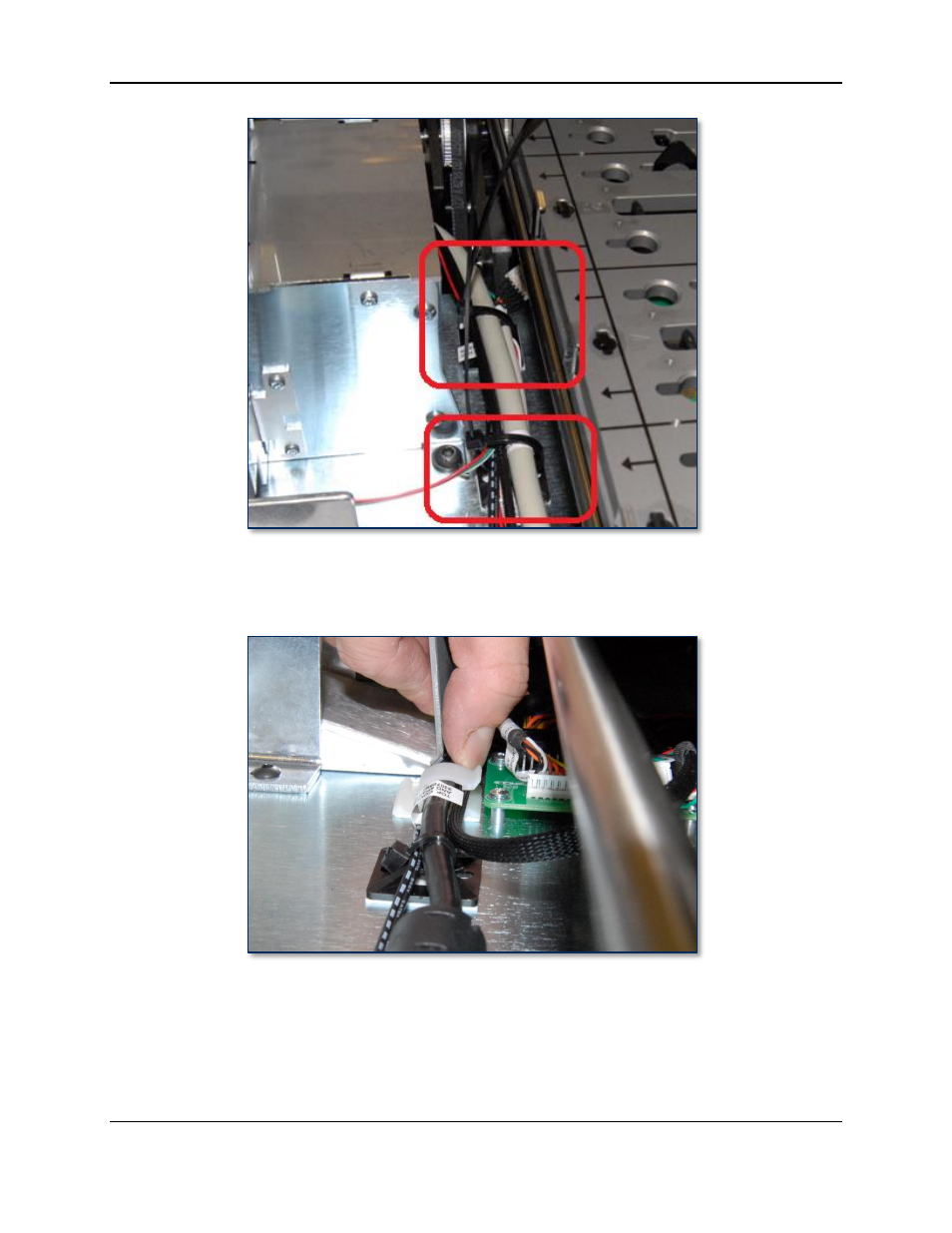

Figure 4-46 - Routing the HOME SENS Cable (TOP FRONT VIEW)
17) Continue routing the HOME SENS cable under the clip just to the left of the HOPPER SHUTTLE
circuit board as shown in Figure 4-47.
Figure 4-47 - Routing the HOME SENS Cable (FRONT VIEW)
18) Plug the two sensor cables into the HOPPER SHUTTLE circuit board (see Figure 4-48).
a) The HOME SENS cable from the rear of the hopper module plugs into the left connector, labeled
HOME SENS.
b) The EXC HOME SENS cable from the front of the hopper module plugs into the right connector,
labeled EXC HOME SENS.
