4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 97

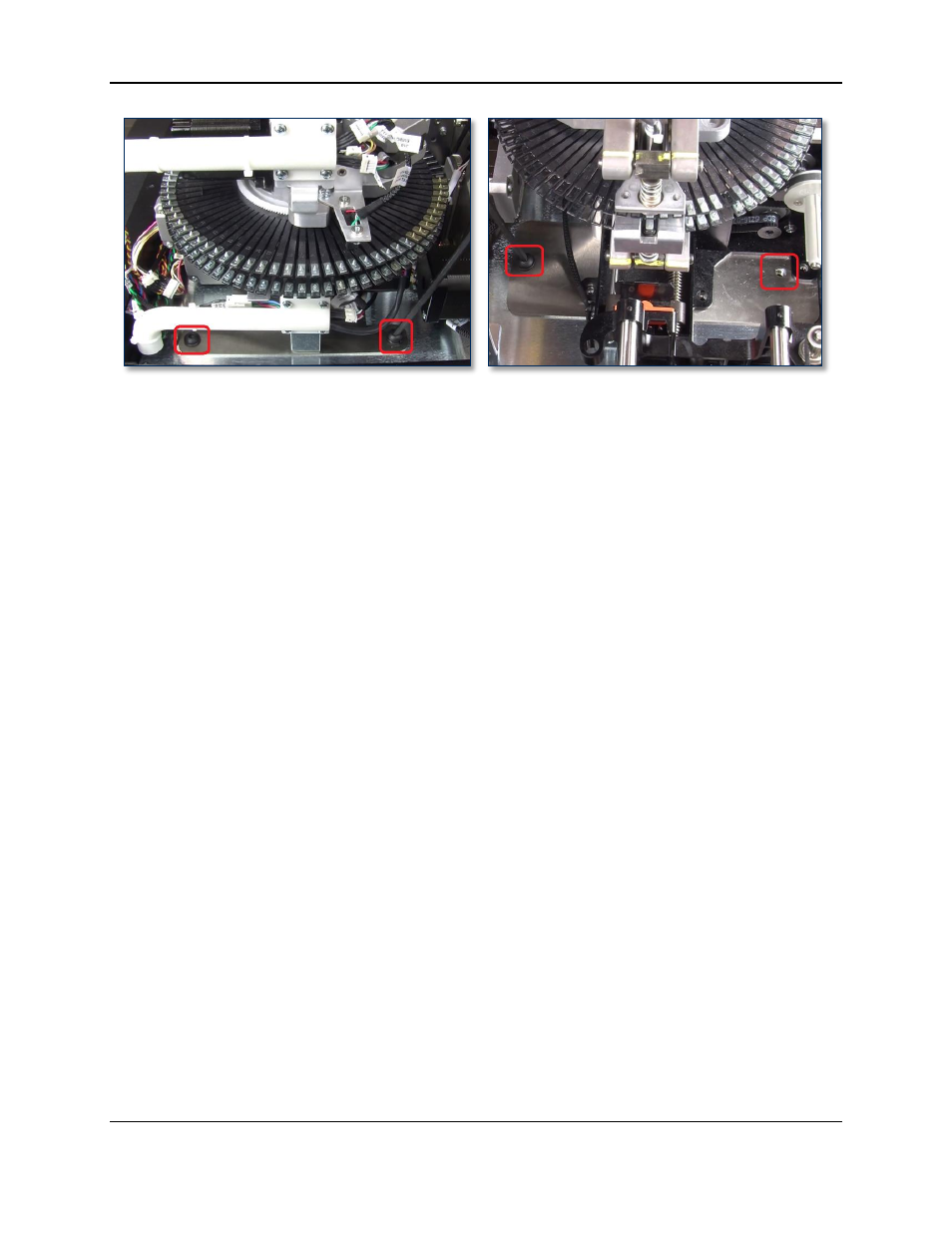

Figure 4-75 - Unfastening Embosser (TOP VIEW FROM FRONT and TOP VIEW FROM REAR)
12) Use both hands to lift the embosser and indenter modules out of the device, making sure the embosser
cable does not catch on anything on the way out. Set the modules aside.
