5 - Adjustments
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 160

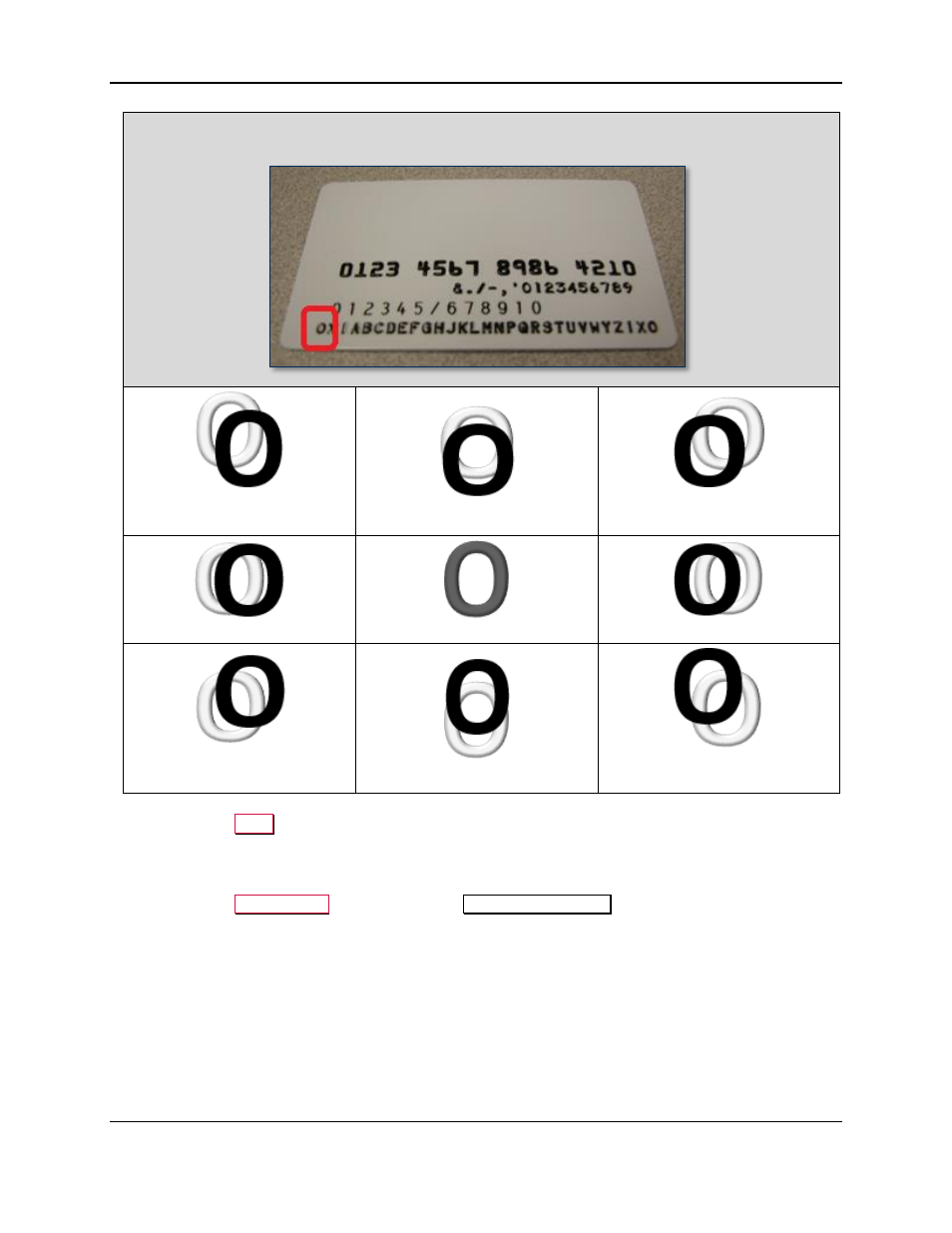

Look at the FIRST letter at the bottom of the card
Adjust Card X Offset, Card Y Offset
↑ Card X Offset
↓ Card Y Offset
↓ Card Y Offset
↓ Card X Offset
↓ Card Y Offset
↑ Card X Offset Finished ↓ Card X Offset
↑ Card X Offset
↑ Card Y Offset
↑ Card Y Offset
↓ Card X Offset
↑ Card Y Offset
7) Calibrate the X_SPI and Y_SPI settings, which changes the spacing of all fonts:
a) Press the Print button. The EC2000 will create a test card with all font IDs.
b) Look only at the last character of the long string of letters at the bottom of the card (Font ID2)
from all angles, and determine whether the embossed character is to the left, right, above, or
below the printed character.
c) Press the Advanced… button to open the Tuning (Advanced) page.
