4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 59

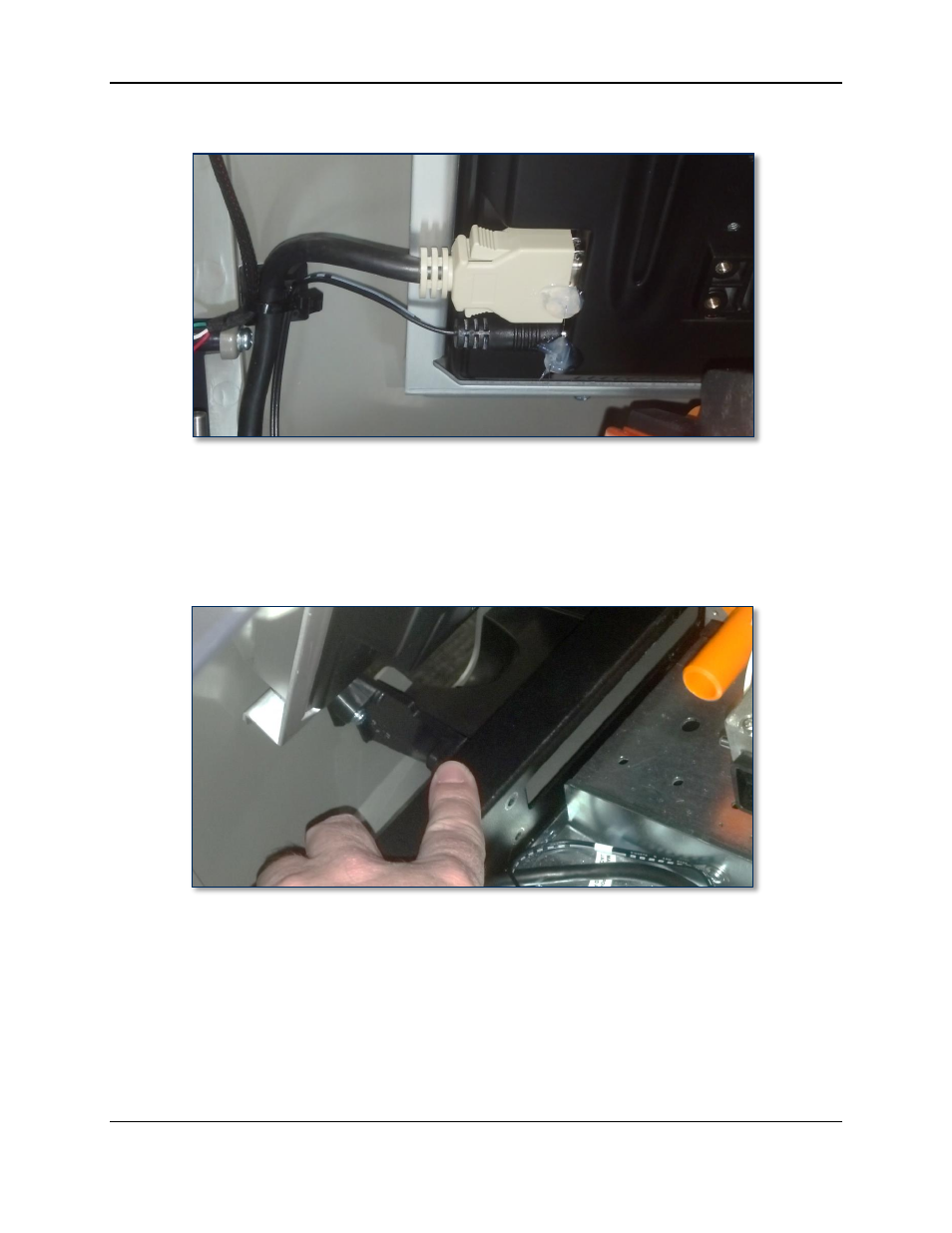

6) Apply silicone adhesive to secure the touchscreen power and video cables as shown in Figure 4-25.
Figure 4-25 - Silicone Adhesive On Touchscreen Connectors (REAR VIEW)
7) Bring the cover back up to resting squarely on the base as shown in Figure 4-24.
8) Stand in front of the device and look straight down over the front. Locate the extension of the cover’s
card output hopper that will meet up with the end of the exit ramp (see Figure 4-26). Push that
portion of the cover gently toward the floor and slide it slightly toward the rear of the device, just
until the base of the device “captures” it.
Figure 4-26 - Card Output Hopper Touching Device's Base (REAR RIGHT VIEW)
9) Crouch in front of the device. Put a finger on each side of the lowest straight sides of the silver
portion of the cover (see Figure 4-27). Squeeze each side inward carefully, and press toward the rear
of the device until the base of the device “captures” them.
