4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 65

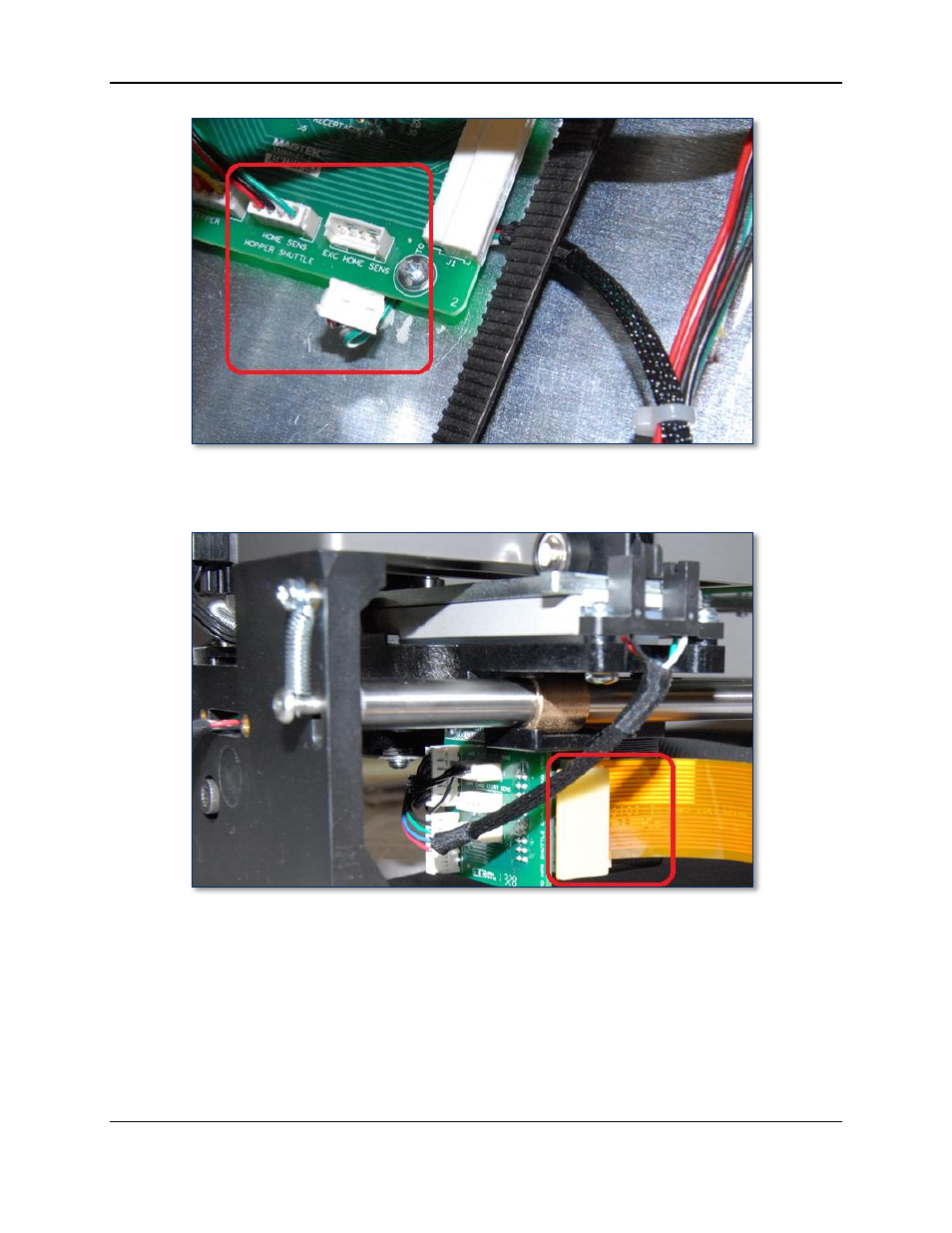

Figure 4-33 – Hopper Module Breakout Board (TOP VIEW FROM FRONT)
10) Trace the hopper module’s flex cable to where it plugs in to the hopper transport (see Figure 4-34).
Figure 4-34 - Hopper Transport Flex Cable Connection (FRONT RIGHT VIEW)
11) Disconnect the flex cable from the hopper transport, and carefully pull it free from the small pad of
double-sided foam tape just next to the plug (see Figure 4-35).
