4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 55

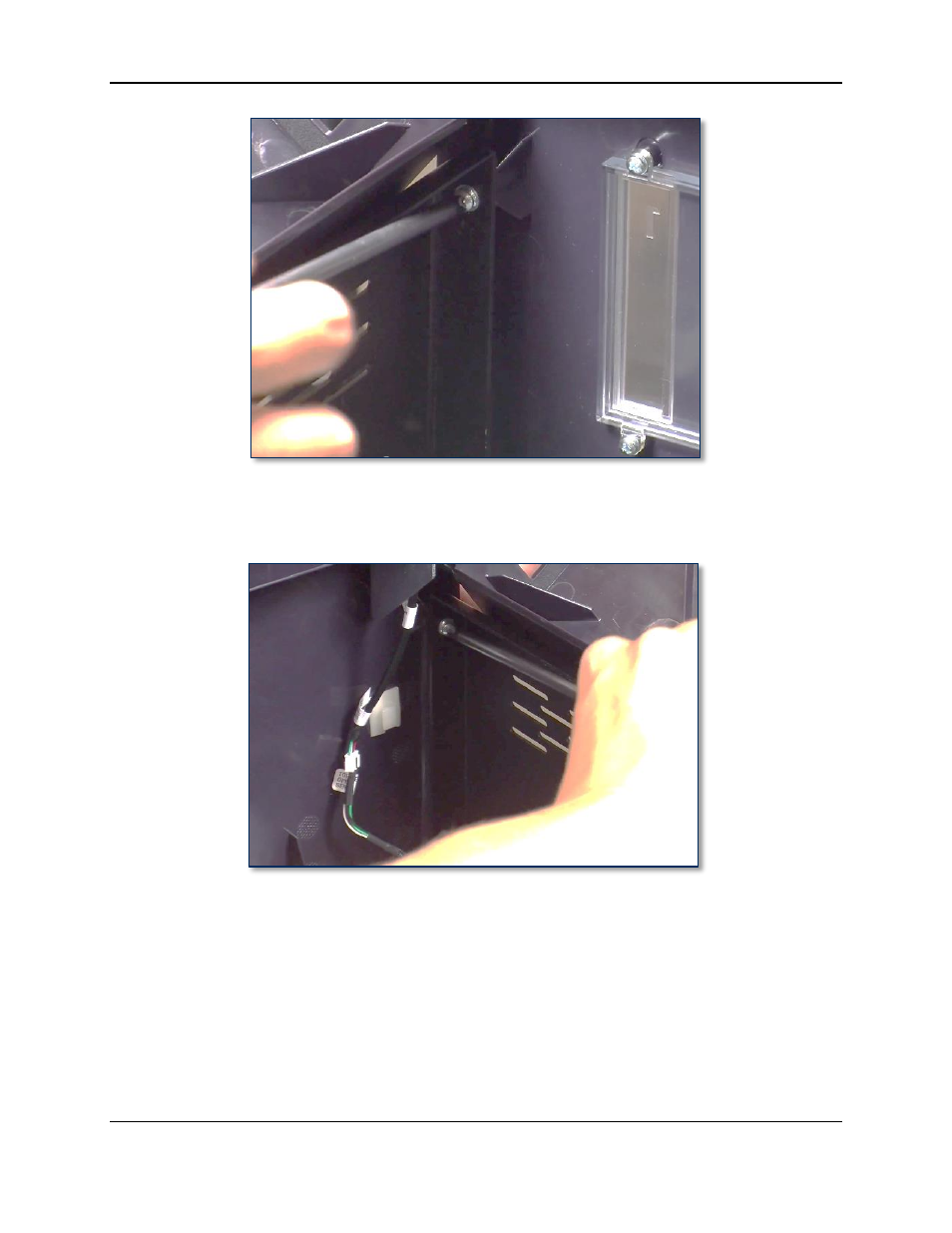

Figure 4-18 - Removing the Right Side Cover Screw Near Top Access Door Hinge (FRONT LEFT VIEW)
14) Use the No. 2 Philips screwdriver to remove the screw and washer in the rear upper left of the device,
opposite the fastener you have already removed (see Figure 4-20).
Figure 4-19 - Removing the Left Side Cover Screw Near Top Access Door Hinge (FRONT RIGHT VIEW)
12) Locate the eight screws and washers and four plastic plates that clamp the two sides of the cover to
the top deck plate (see Figure 4-9).
13) Use the No. 2 Philips screwdriver to remove the screws, washers, and plates and set them aside.
Note: The front two screws may be easier to remove with the No. 1 Philips screwdriver.
